ESP32-2432S028R "Cheap Yellow Display", ST7789 version

The CYD with an ST7789 screen (often the one with two USB ports, though some have one): 2.8" 240x320 ST7789 with XPT2046 resistive touch on a second SPI bus. Same pins as the original CYD.

ESP32-2432S028R , ST7789 version: a 240 by 320 panel, drawn from the preset — Drawn from the preset - no vendor photograph of this board was published.

Design a UI for this board Test my board Read the quick start

Building for it

A project is made for one toolchain, picked when you start it. All four can drive this board:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	Change a screen by editing a file on the board. No compiler once it is flashed. Start a project
ESPHome	No compiler to install, and the panel can join Home Assistant as real entities. Start a project
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Sunton
MCU	ESP32 (WROOM / WROVER) Xtensa LX6 dual-core @ 240 MHz, 520 KB SRAM (+ up to 8 MB PSRAM on WROVER)
Display	Sitronix ST7789, 240 x 320 px, SPI (4-wire serial), 16-bit colour
Touch	XPTek XPT2046 (resistive, SPI)
Backlight	GPIO 21, dimmable (PWM)
Memory	4 MB flash, no PSRAM (N4)
Graphics library	TFT_eSPI

Display pins

ST7789 on SPI (4-wire serial): SPI clock 40 MHz, host HSPI, BGR colour order, inversion off.

Signal	Pin
SCK / CLK	GPIO 14
MOSI / SDA	GPIO 13
MISO / SDO	GPIO 12
CS	GPIO 15
DC / RS	GPIO 2
RESET	not connected
Backlight	GPIO 21

Touch pins

XPT2046: 2500 kHz, its own SPI bus.

Signal	Pin
SCK	GPIO 25
MOSI	GPIO 32
MISO	GPIO 39
CS	GPIO 33
IRQ / PENIRQ	GPIO 36

Also on the board

CN1 I2C (GPIO 27 / 22) - SDA GPIO 27, SCL GPIO 22

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Colour order BGR and inversion off are the CYD community's setup for the two-USB board's ST7789 (witnessmenow/ESP32-Cheap-Yellow-Display, CYD2USB) and Guition's own for their ST7789 boards, not seen on the glass here. The two-USB board also ships with an ILI9341: if this preset gives a plain white screen, the panel is an ILI9341 being sent an ST7789's start-up - use the "two USB ports, ILI9341" preset. If the picture is a negative, turn Invert on; if red and blue are swapped, set RGB; if touches land mirrored, the touch calibration on first start puts it right.

Designing for it in LCD Wizard

Choose ESP32-2432S028R "Cheap Yellow Display", ST7789 version on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the TFT_eSPI configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The XPT2046 is resistive, so the firmware calibrates it on the device: touch the crosses on the first boot after an upload and the result is saved. The screen says whether it worked.
The backlight is dimmable: give a slider or a button a Set backlight action.
Screens are designed for 240 x 320 px in either orientation, with LVGL 9 or LVGL 8.

The parts

ST7789. Excellent colour and tolerates 80 MHz SPI. Many modules have no CS pin - tie it low and set CS to -1.

XPT2046. The classic 4-wire resistive controller. Needs calibration. Can share the display SPI bus with its own CS.

ESP32 (WROOM / WROVER). No native RGB parallel peripheral - use SPI or an 8/16-bit i80 bus.

TFT_eSPI. Fastest for SPI panels on ESP32. Configured via User_Setup.h build defines.

The pinout on one page

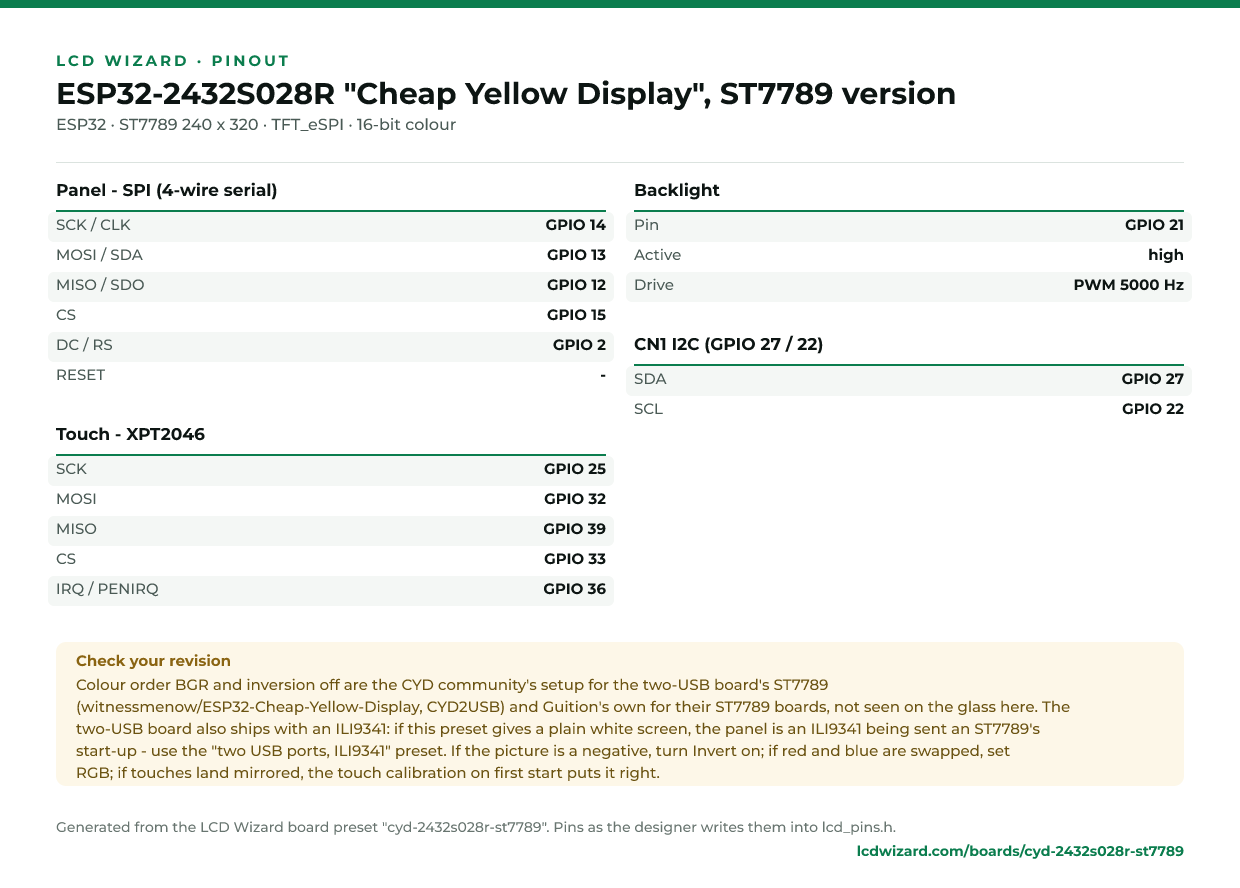

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.
