Waveshare ESP32-S3-Touch-AMOLED-1.43 (SH8601 panel)

1.43" 466x466 round AMOLED (SH8601, QSPI), FT3168 touch, TF card, QMI8658, PCF85063ATL, battery sense.

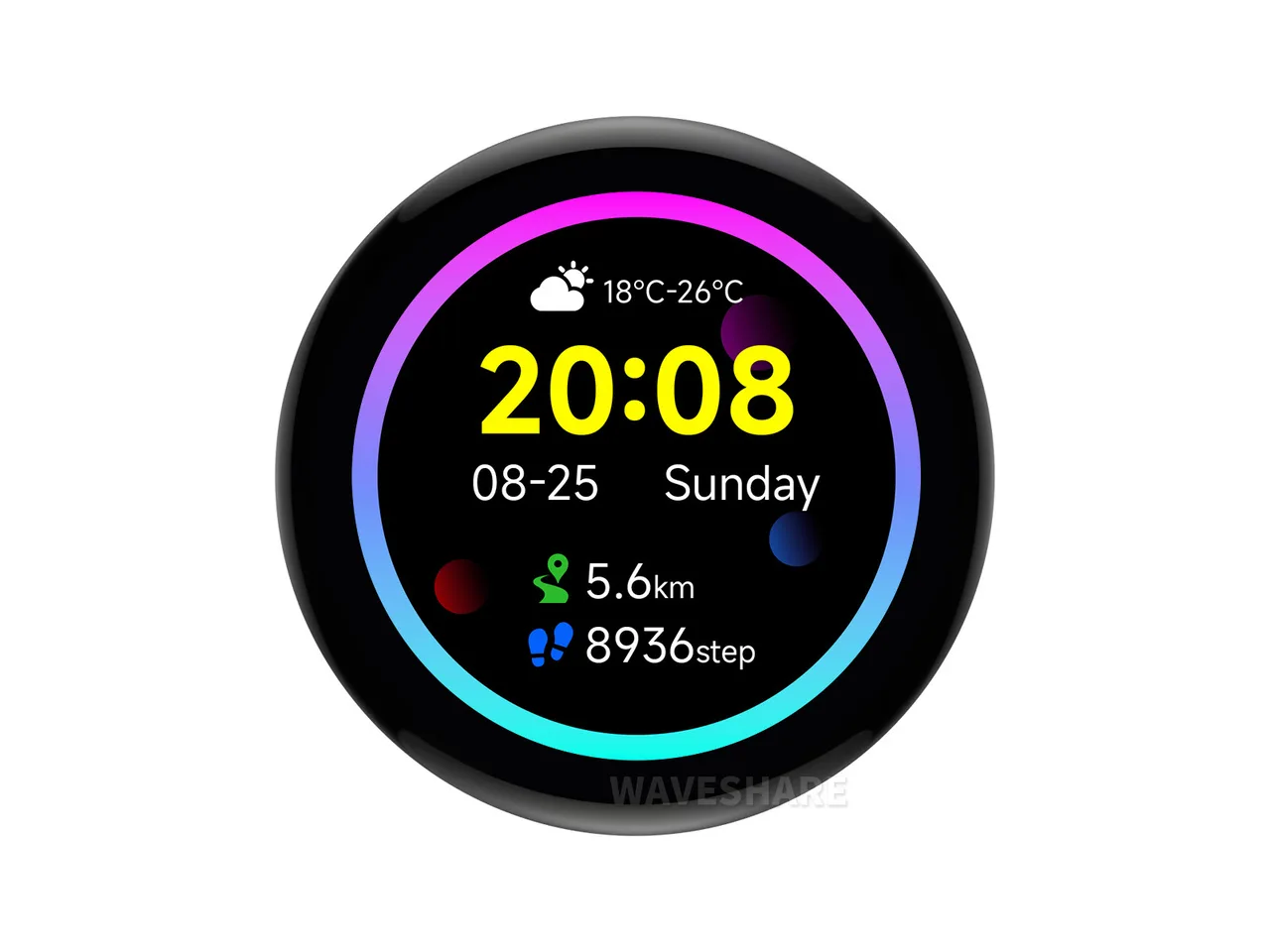

The Waveshare ESP32-S3-Touch-AMOLED-1.43 board — Photograph: Waveshare (product photo for the ESP32-S3-Touch-AMOLED-1.43) · vendor product photo, no licence stated

Design a UI for this board Test my board Purchase this board Read the quick start

Affiliate link: LCD Wizard may earn a commission if you buy through it.

Building for it

A project is made for one toolchain, picked when you start it. For this board you can use three of the four:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	Change a screen by editing a file on the board. No compiler once it is flashed. Start a project
ESPHome	ESPHome has no driver for this controller.
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Waveshare
MCU	ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules)
Display	Sinowealth SH8601, 466 x 466 px, QSPI (quad SPI), 16-bit colour
Touch	FocalTech FT3168 / FT6146 (capacitive, I2C)
Backlight	None: the panel is its own light, dimmed by a command
Memory	16 MB flash, 8 MB octal PSRAM (N16R8)
Graphics library	GFX Library for Arduino

Display pins

SH8601 on QSPI (quad SPI): QSPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion off.

Signal	Pin
SCK	GPIO 10
D0 - D3	GPIO 11, 12, 13, 14
CS	GPIO 9
RESET	GPIO 21

Touch pins

FT3168 / FT6146: I2C address 0x38, 400 kHz, shares the display bus.

Signal	Pin
SDA	GPIO 47
SCL	GPIO 48
RESET	not connected

Also on the board

I2C (GPIO 47 / 48) - SDA GPIO 47, SCL GPIO 48
SPI (TF card) - SCK GPIO 41, MOSI GPIO 39, MISO GPIO 40
IMU - QMI8658, at 0x6B, on I2C (GPIO 47 / 48)
RTC - PCF85063, at 0x51, on I2C (GPIO 47 / 48)
SDCard - SD card, on SPI (TF card), CS GPIO 38
GPIO 42 is set high at boot - OLED_EN panel enable - set by the factory program only
Battery - analog input on GPIO 4
BOOTButton - input on GPIO 0

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Pins from Waveshare's demo code and schematic (https://files.waveshare.com/wiki/ESP32-S3-Touch-AMOLED-1.43/ESP32-S3-AMOLED-1.43-Demo-V3.zip). Sold with one of two panels under the same part number. This is the SH8601 one (its id register 0xDA reads 0x86); if the picture sits 6 columns to the left, choose the CO5300 preset. Every pin recorded agrees between the vendor's code and the schematic's GPIO table (QSPI 9/10/11-14, RST 21, OLED_EN 42, I2C 47/48, SD 38-41, BAT_ADC 4, BOOT 0). Brightness is a command to the panel, not a backlight pin. Compiled; not run on a board here.

Designing for it in LCD Wizard

Choose Waveshare ESP32-S3-Touch-AMOLED-1.43 (SH8601 panel) on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the GFX Library for Arduino configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The FT3168 / FT6146 is capacitive and needs no calibration. The firmware resets it and checks it answers on every boot.
The panel has no backlight pin: it is its own light, and its brightness is a command. Give a slider or a button a Set backlight action and it dims as a backlight would.
With PSRAM the LVGL memory pool can live there, leaving internal RAM for everything else.
Screens are designed for 466 x 466 px in either orientation, with LVGL 9 or LVGL 8.

The parts

SH8601. AMOLED controller with per-panel brightness commands instead of a backlight pin. Waveshare's first 1.8" boards.

FT3168 / FT6146. Waveshare's AMOLED boards (1.43", 1.64", 1.8", 1.91", 2.06").

ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.

GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

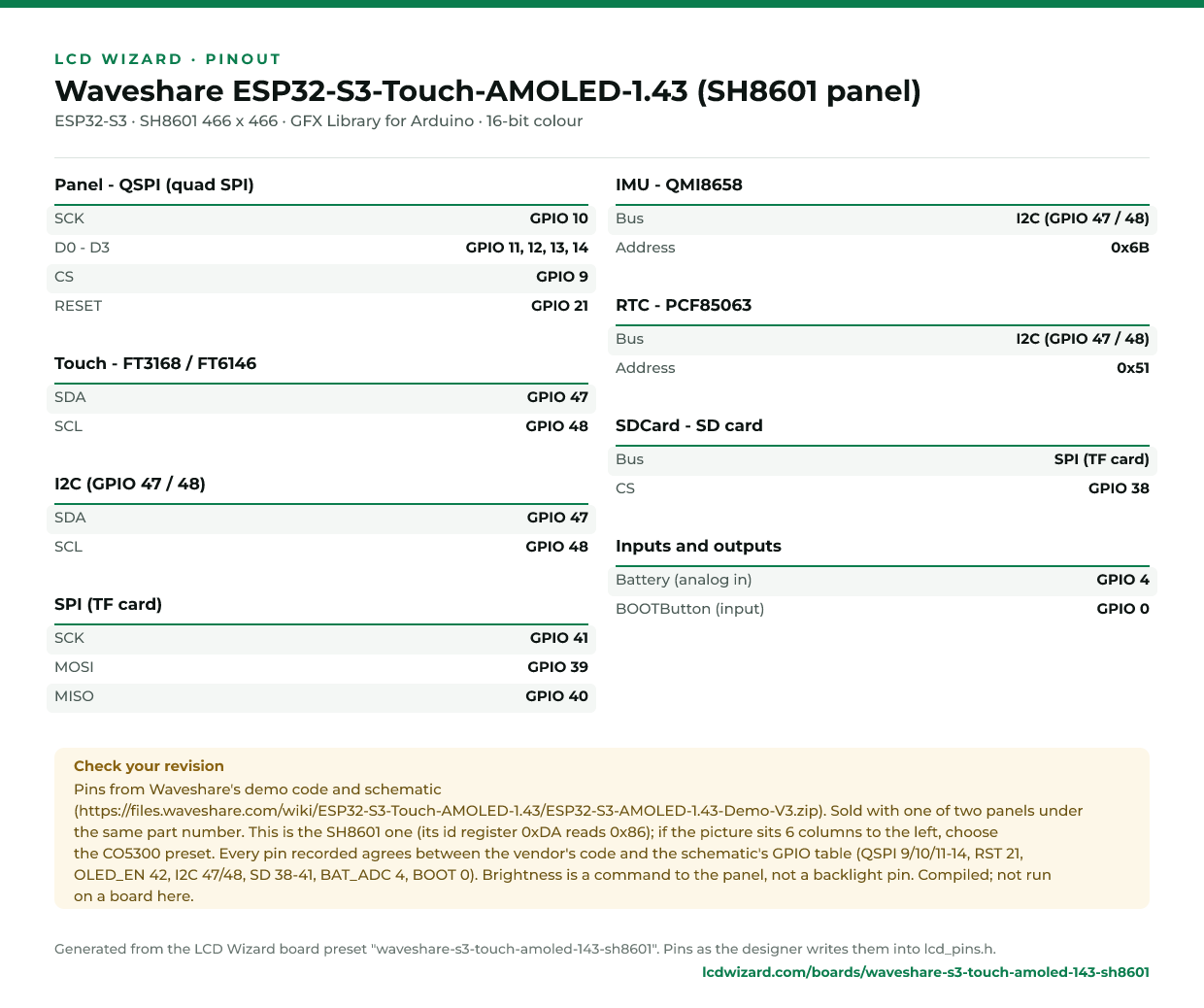

The pinout on one page

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.
