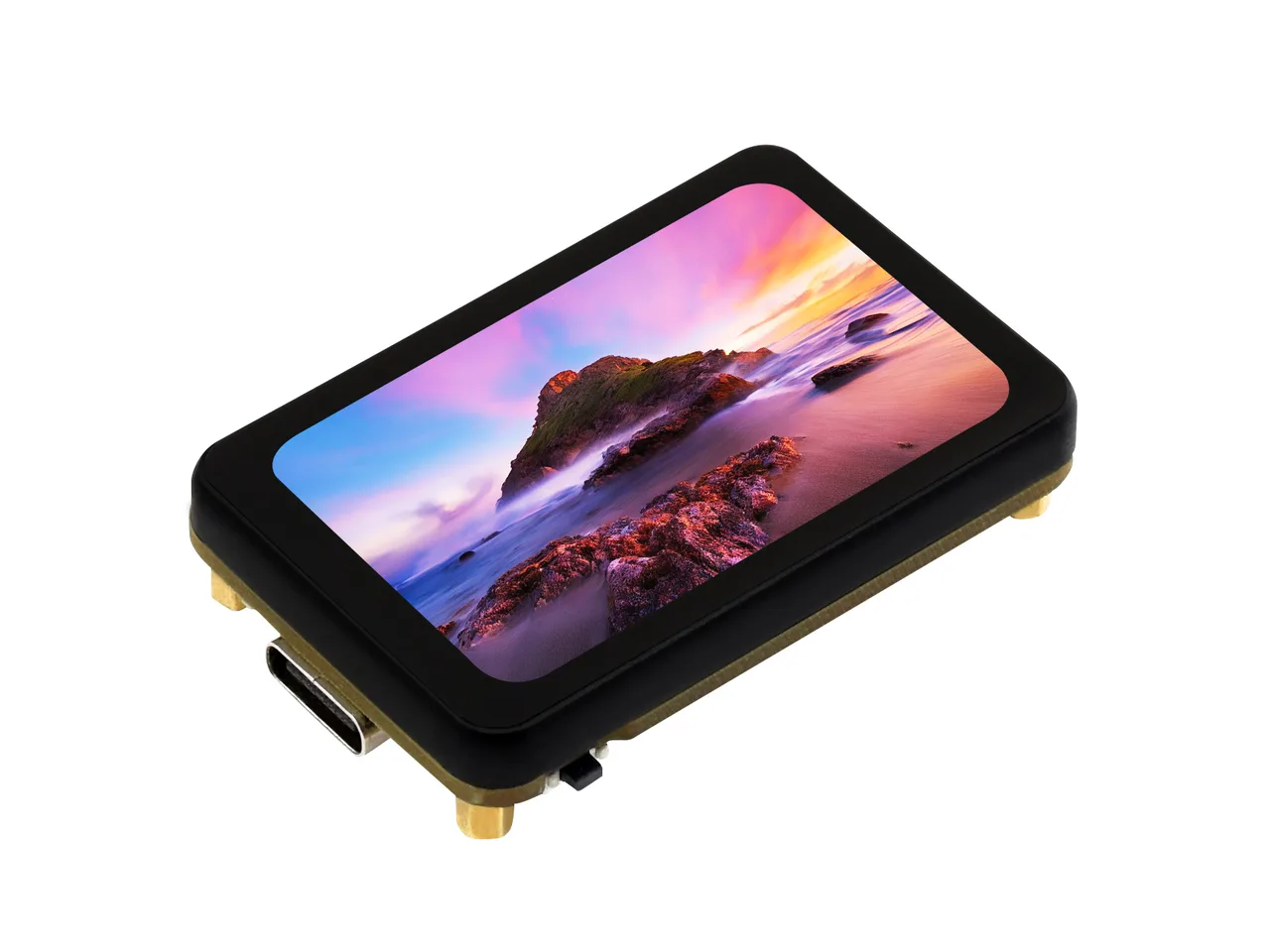

Waveshare ESP32-S3-Touch-AMOLED-1.64 V1.1

1.64" 280x456 AMOLED (CO5300, QSPI), FT3168 touch, TF card, QMI8658, battery sense.

Design a UI for this board Test my board Purchase this board Read the quick start

Affiliate link: LCD Wizard may earn a commission if you buy through it.

Building for it

A project is made for one toolchain, picked when you start it. All four can drive this board:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	Change a screen by editing a file on the board. No compiler once it is flashed. Start a project
ESPHome	No compiler to install, and the panel can join Home Assistant as real entities. Start a project
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Waveshare
MCU	ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules)
Display	Chipone CO5300, 280 x 456 px, QSPI (quad SPI), 16-bit colour
Touch	FocalTech FT3168 / FT6146 (capacitive, I2C)
Backlight	None: the panel is its own light, dimmed by a command
Memory	16 MB flash, 8 MB octal PSRAM (N16R8)
Graphics library	GFX Library for Arduino

Display pins

CO5300 on QSPI (quad SPI): QSPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion off.

Signal	Pin
SCK	GPIO 10
D0 - D3	GPIO 11, 12, 13, 14
CS	GPIO 46
RESET	GPIO 21

Touch pins

FT3168 / FT6146: I2C address 0x38, 400 kHz, shares the display bus.

Signal	Pin
SDA	GPIO 47
SCL	GPIO 48
INT / IRQ	GPIO 18
RESET	not connected

Also on the board

I2C (GPIO 47 / 48) - SDA GPIO 47, SCL GPIO 48
SPI (TF card) - SCK GPIO 41, MOSI GPIO 39, MISO GPIO 40
IMU - QMI8658, at 0x6B, on I2C (GPIO 47 / 48)
SDCard - SD card, on SPI (TF card), CS GPIO 38
Battery - analog input on GPIO 4
BOOTButton - input on GPIO 0

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Pins from Waveshare's demo code and schematic (https://github.com/waveshareteam/ESP32-S3-Touch-AMOLED-1.64-v2). Two hardware revisions with different pins; this is V1.1 (Rev1.1 on the schematic, version silkscreen on the right side of the PCB by the pin headers), whose examples are the GitHub repository named -v2. V1 (silkscreen at the top; record esp32-s3-touch-amoled-1.64) has the panel's CS on GPIO9 and the IMU's INT1 on GPIO46, and leaves TE, the touch interrupt, the touch reset and IMU INT2 unconnected. The glass has rounded corners whose radius Waveshare does not give, so the designer draws them square: keep what matters out of the corners, or set a corner radius on the Display tab once it is measured. Brightness is a command to the panel, not a backlight pin. Compiled; not run on a board here.

Designing for it in LCD Wizard

Choose Waveshare ESP32-S3-Touch-AMOLED-1.64 V1.1 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the GFX Library for Arduino configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The FT3168 / FT6146 is capacitive and needs no calibration. The firmware resets it and checks it answers on every boot.
The panel has no backlight pin: it is its own light, and its brightness is a command. Give a slider or a button a Set backlight action and it dims as a backlight would.
With PSRAM the LVGL memory pool can live there, leaving internal RAM for everything else.
Screens are designed for 280 x 456 px in either orientation, with LVGL 9 or LVGL 8.

The parts

CO5300. The AMOLED controller on most of Waveshare's 1.32"-2.16" boards, round and rectangular. Brightness is a command, not a backlight pin.

FT3168 / FT6146. Waveshare's AMOLED boards (1.43", 1.64", 1.8", 1.91", 2.06").

ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.

GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

The pinout on one page

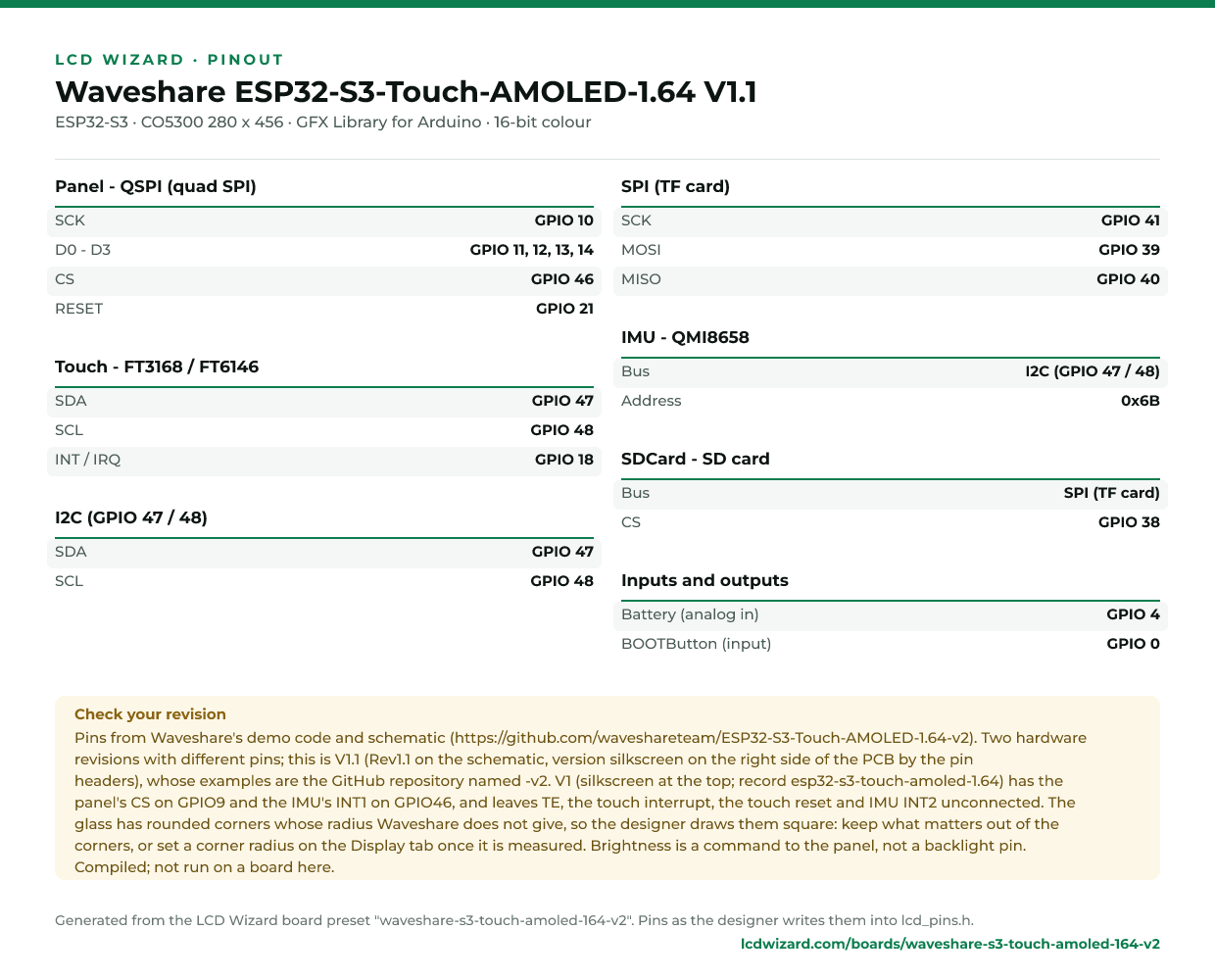

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.
