Waveshare ESP32-S3-Touch-LCD-2.8C

2.8" 480x480 round IPS panel (ST7701, RGB) with GT911 touch, a TF card slot, QMI8658 IMU, PCF85063 RTC, a buzzer and battery sense. A TCA9554 expander handles the panel's reset and chip select and the touch reset.

Design a UI for this board Test my board Read the quick start

Building for it

A project is made for one toolchain, picked when you start it. For this board you can use two of the four:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	Its panel is brought up by its maker's own register load, which only the Arduino export sends: the drivers this export uses for the controller send their own numbered start-up sequences only.
ESPHome	An ST7701 needs a register load written for its particular panel, sent over SPI alongside the RGB bus, and there is no generic one. ESPHome carries the sequence inside its model for a few named boards - the Guition ESP32-4848S040 among them - so pick one of those on the Board tab, or use the Arduino export, which can send every sequence the Display tab offers.
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Waveshare
MCU	ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules)
Display	Sitronix ST7701 / ST7701S, 480 x 480 px, RGB565 parallel (DPI), 16-bit colour
Touch	Goodix GT911 (capacitive, I2C)
Backlight	GPIO 6, dimmable (PWM)
Memory	16 MB flash, 8 MB octal PSRAM (N16R8)
Graphics library	GFX Library for Arduino

Display pins

ST7701 / ST7701S on RGB565 parallel (DPI): RGB colour order, inversion off.

Signal	Pin
DE	GPIO 40
VSYNC	GPIO 39
HSYNC	GPIO 38
PCLK	GPIO 41
R0 - R4	GPIO 46, 3, 8, 18, 17
G0 - G5	GPIO 14, 13, 12, 11, 10, 9
B0 - B4	GPIO 5, 45, 48, 47, 21
CS (init only)	TCA9554 pin 2
SCK (init only)	GPIO 2
MOSI (init only)	GPIO 1
RESET	TCA9554 pin 0
Backlight	GPIO 6

Touch pins

GT911: I2C address 0x5D, 400 kHz, shares the display bus.

Signal	Pin
SDA	GPIO 15
SCL	GPIO 7
INT / IRQ	GPIO 16
RESET	TCA9554 pin 1

Also on the board

I2C (GPIO 15 / 7) - SDA GPIO 15, SCL GPIO 7
TCA9554 I/O expander at 0x20, driving the lines marked above
IMU - QMI8658, at 0x6B, on I2C (GPIO 15 / 7)
RTC - PCF85063, at 0x51, on I2C (GPIO 15 / 7)
SDCard - SD card, CLK GPIO 2, CMD GPIO 1, D0 GPIO 42
TCA9554 pin 3 is set high at boot - TF card D3 held high on EXIO4
Battery - analog input on GPIO 4
BOOTButton - input on GPIO 0
Buzzer - output on TCA9554 pin 7

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Nobody at LCD Wizard has had this board: the export for it compiles and has not been seen on the panel. Every pin is from Waveshare's schematic and their Arduino demo, which is what the board's factory firmware was built from. The panel is a round 480x480 ST7701 that shows nothing until Waveshare's own register load is sent over three wires (SDA GPIO 1, SCL GPIO 2, CS on the TCA9554's EXIO3, 40 MHz as Waveshare sends it); the sketch selects the panel for the load and lets it go after, because the TF card uses the same two GPIOs (SDMMC 1-bit: CLK 2, CMD 1, D0 42, D3 held high on EXIO4) and is mounted after the panel. Only GFX Library for Arduino sends that load. The pixel clock is Waveshare's 30 MHz with their porches (hsync 8/10/50, vsync 2/18/8); if the picture shimmers or drifts, lower it on the Display tab (Waveshare's ESP-IDF demo runs 18 MHz) before anything else. Touch (GT911, 0x5D, INT GPIO 16, reset EXIO2), the expander (0x20), the IMU (QMI8658, 0x6B) and the RTC (PCF85063, 0x51) share I2C on GPIO 15/7. The panel's reset is EXIO1 and the backlight is GPIO 6 (PWM, 20 kHz). The battery reads on GPIO 4 through a divide-by-three. The buzzer is EXIO8, a digital output called Buzzer on Hardware > I/O; it starts silent. The serial log is on the USB-C port marked UART (the CH343P), so USB CDC on boot is off; the other USB-C port is the S3's own USB. There is no audio chip, speaker or microphone. The ESP32-S3-LCD-2.8C is the same board without touch: set Touch to None. Compiled; not run on a board here.

Designing for it in LCD Wizard

Choose Waveshare ESP32-S3-Touch-LCD-2.8C on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the GFX Library for Arduino configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The GT911 is capacitive and needs no calibration. The firmware resets it and checks it answers on every boot.
The backlight is dimmable: give a slider or a button a Set backlight action.
An RGB panel keeps its frame buffer in PSRAM, which this board has.
Screens are designed for 480 x 480 px in either orientation, with LVGL 9 or LVGL 8.

The parts

ST7701 / ST7701S. RGB data plus a 3-wire SPI init sequence. You must wire CS/SCK/MOSI as well, and pick the init sequence your panel wants.

GT911. The address is selected by the INT pin level during reset, so wire INT and RST if you can.

ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.

GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

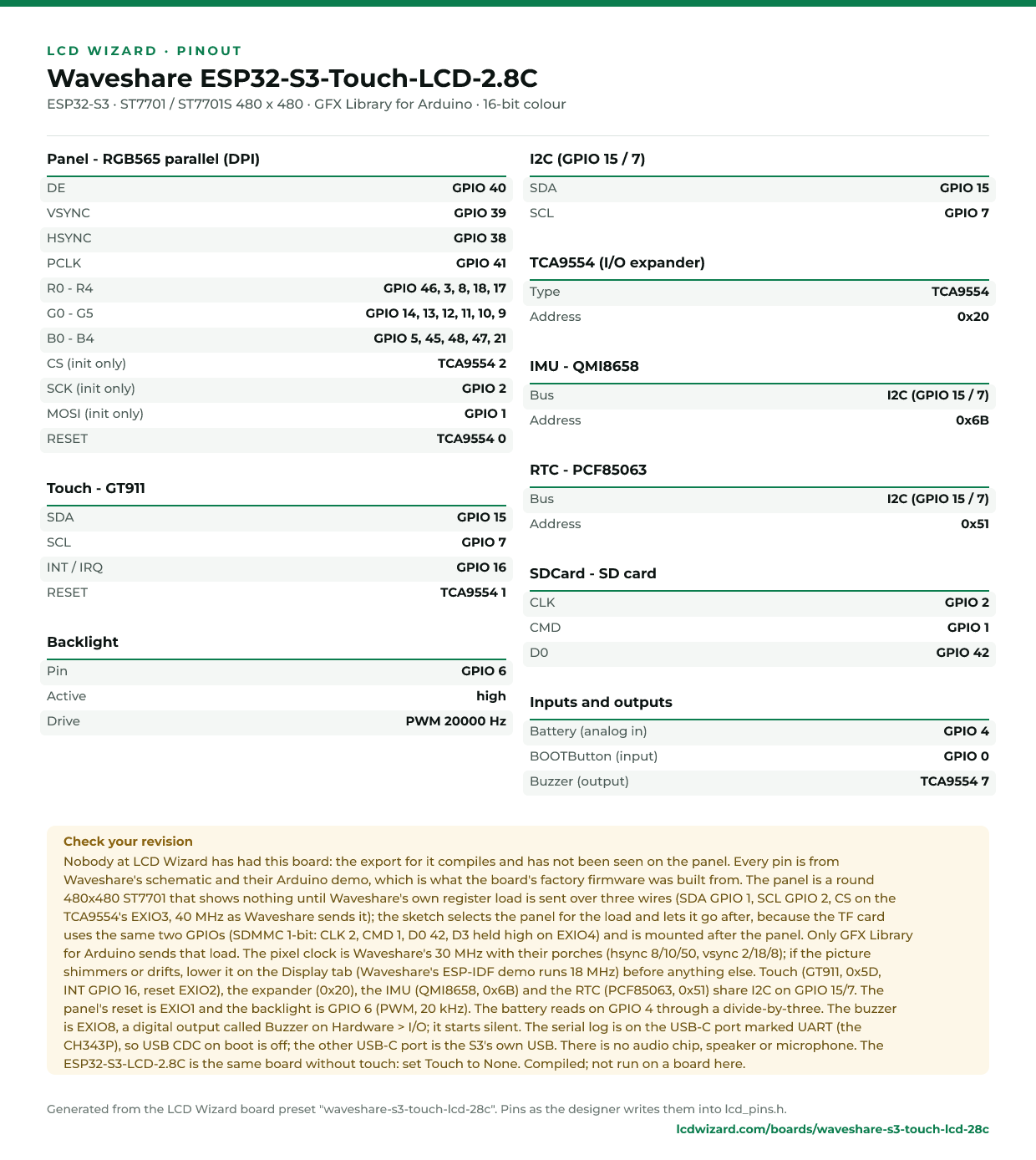

The pinout on one page

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.

Designs for this board

Nobody has published a design for this board yet. Publish yours from the designer and it appears here and in the gallery.

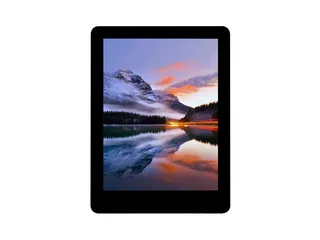

Waveshare ESP32-S3-Touch-LCD-2.8B2.8" 480x640 IPS panel (ST7701, RGB) with GT911 touch, a TF card slot, QMI8658 IMU, PCF85063 RTC and battery sense. A TCA9554 expander handles the panel's reset and chip select and the touch reset.ESP32-S3 · ST7701 / ST7701S 480 x 640 · GT911 touchPurchase this board
