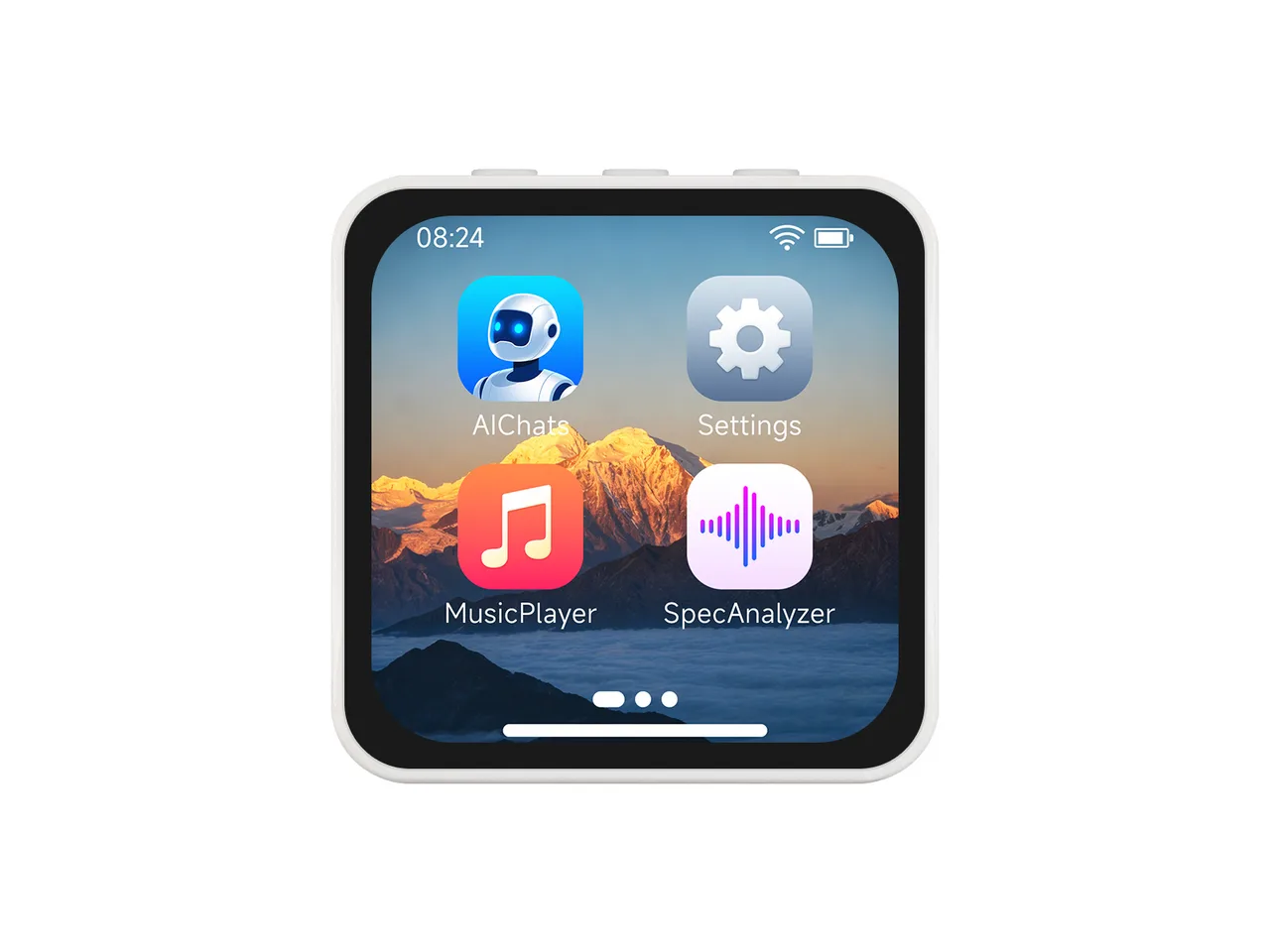

Waveshare ESP32-S3-Touch-AMOLED-2.16

2.16" 480x480 AMOLED (CO5300, QSPI), CST9220 touch, ES8311 speaker and ES7210 microphones, TF card, QMI8658A, PCF85063ATL, AXP2101.

Design a UI for this board Test my board Purchase this board Read the quick start

Affiliate link: LCD Wizard may earn a commission if you buy through it.

Building for it

A project is made for one toolchain, picked when you start it. For this board you can use three of the four:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	Change a screen by editing a file on the board. No compiler once it is flashed. Start a project
ESPHome	Its maker runs the panel under an orientation byte of its own, which this export does not write yet - the picture and the touch would not agree.
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Waveshare
MCU	ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules)
Display	Chipone CO5300, 480 x 480 px, QSPI (quad SPI), 16-bit colour
Touch	Hynitron CST9217 / CST9220 (capacitive, I2C)
Backlight	None: the panel is its own light, dimmed by a command
Memory	16 MB flash, 8 MB octal PSRAM (N16R8)
Graphics library	GFX Library for Arduino

Display pins

CO5300 on QSPI (quad SPI): QSPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion off.

Signal	Pin
SCK	GPIO 38
D0 - D3	GPIO 4, 5, 6, 7
CS	GPIO 12
RESET	GPIO 39

Touch pins

CST9217 / CST9220: I2C address 0x5A, 400 kHz, shares the display bus, X and Y swapped, X inverted.

Signal	Pin
SDA	GPIO 15
SCL	GPIO 14
INT / IRQ	GPIO 11
RESET	GPIO 40

Also on the board

I2C (GPIO 15 / 14) - SDA GPIO 15, SCL GPIO 14
IMU - QMI8658, at 0x6B, on I2C (GPIO 15 / 14)
RTC - PCF85063, at 0x51, on I2C (GPIO 15 / 14)
PMIC - AXP2101, at 0x34, on I2C (GPIO 15 / 14)
SDCard - SD card, CLK GPIO 2, CMD GPIO 1, D0 GPIO 3
BOOTButton - input on GPIO 0
KEYButton - input on GPIO 18
PWRButton - input on GPIO 16

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Pins from Waveshare's demo code and schematic (https://github.com/waveshareteam/ESP32-S3-Touch-AMOLED-2.16). 1) Start-up table: the Arduino sketches use the GFX library's short CO5300 table and the ESP-IDF BSP a longer one with maker's-page writes (0xFE 0x20, 0x19 0x10, 0x1C 0xA0), TE on and the two address windows. Both are Waveshare's for this board; the BSP's is recorded as `initSeq` because it is the fuller and is the one the C6 board of the same size shares. Waveshare runs this glass under orientation byte 0xA0 with the picture starting at column 0, and the preset does the same: the byte is on the Display tab, and a turned design is turned over it. The glass has rounded corners whose radius Waveshare does not give, so the designer draws them square: keep what matters out of the corners, or set a corner radius on the Display tab once it is measured. Brightness is a command to the panel, not a backlight pin. Compiled; not run on a board here.

Designing for it in LCD Wizard

Choose Waveshare ESP32-S3-Touch-AMOLED-2.16 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the GFX Library for Arduino configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The CST9217 / CST9220 is capacitive and needs no calibration. The firmware resets it and checks it answers on every boot.
The panel has no backlight pin: it is its own light, and its brightness is a command. Give a slider or a button a Set backlight action and it dims as a backlight would.
With PSRAM the LVGL memory pool can live there, leaving internal RAM for everything else.
Screens are designed for 480 x 480 px in either orientation, with LVGL 9 or LVGL 8.

The parts

CO5300. The AMOLED controller on most of Waveshare's 1.32"-2.16" boards, round and rectangular. Brightness is a command, not a backlight pin.

CST9217 / CST9220. Waveshare's 1.75" and 2.16" AMOLED boards.

ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.

GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

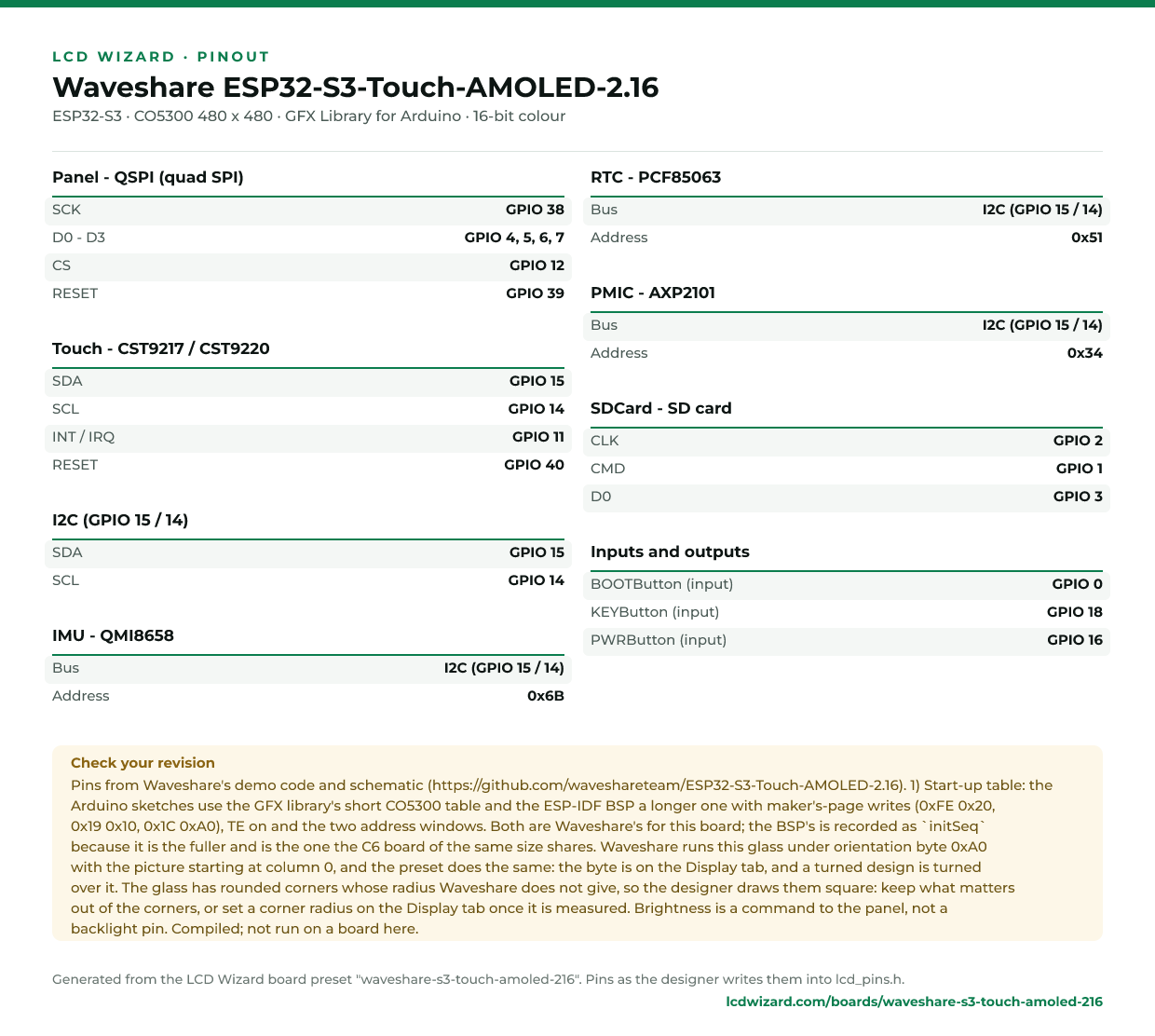

The pinout on one page

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.
