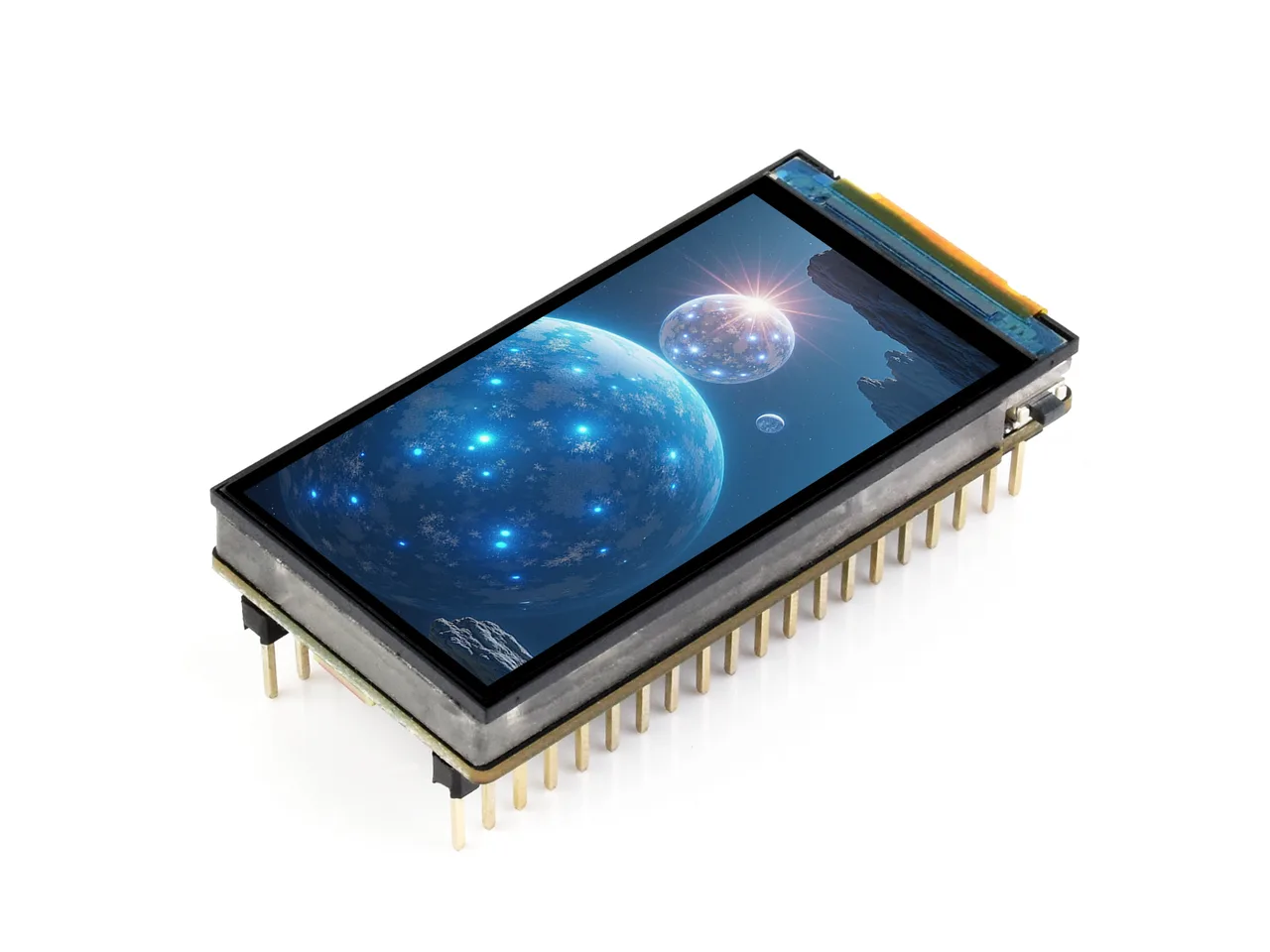

Waveshare ESP32-S3-LCD-1.9
1.9" 170x320 IPS LCD (ST7789V2, SPI), TF card, QMI8658.
Building for it
A project is made for one toolchain, picked when you start it. All three can drive this board:
| Toolchain | |
|---|---|
| Arduino (C++) | Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project |
| MicroPython | Change a screen by editing a file on the board. No compiler once it is flashed. Start a project |
| ESPHome | No compiler to install, and the panel can join Home Assistant as real entities. Start a project |
At a glance
| Part | Detail |
|---|---|
| Maker | Waveshare |
| MCU | ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules) |
| Display | Sitronix ST7789, 170 x 320 px, SPI (4-wire serial), 16-bit colour |
| Touch | None |
| Backlight | GPIO 14, dimmable (PWM) |
| Memory | 16 MB flash, 8 MB octal PSRAM (N16R8) |
| Graphics library | GFX Library for Arduino |
Display pins
ST7789 on SPI (4-wire serial): SPI clock 20 MHz, host SPI3_HOST, RGB colour order, inversion on.
| Signal | Pin |
|---|---|
| SCK / CLK | GPIO 10 |
| MOSI / SDA | GPIO 13 |
| CS | GPIO 12 |
| DC / RS | GPIO 11 |
| RESET | GPIO 9 |
| Backlight | GPIO 14 (active low) |
Check your revision. Pins from Waveshare's demo code and schematic (https://github.com/waveshareteam/ESP32-S3-LCD-1.9 (commit 12b8fc74434103d0c5721906b69d866c789e4c41)). Colour inversion: all three vendor ESP-IDF/esp_lcd tables send 0x21 (INVON) but the Arduino_GFX example passes ips=false (no INVON) - chose invert=true.
Designing for it in LCD Wizard
- Choose Waveshare ESP32-S3-LCD-1.9 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch,
lcd_pins.h, the GFX Library for Arduino configuration,lv_conf.handplatformio.ini- a project that builds for this board as it comes. - The backlight is dimmable: give a slider or a button a Set backlight action.
- With PSRAM the LVGL memory pool can live there, leaving internal RAM for everything else.
- Screens are designed for 170 x 320 px in either orientation, with LVGL 9 or LVGL 8.
The parts
ST7789. Excellent colour and tolerates 80 MHz SPI. Many modules have no CS pin - tie it low and set CS to -1.
ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.
GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

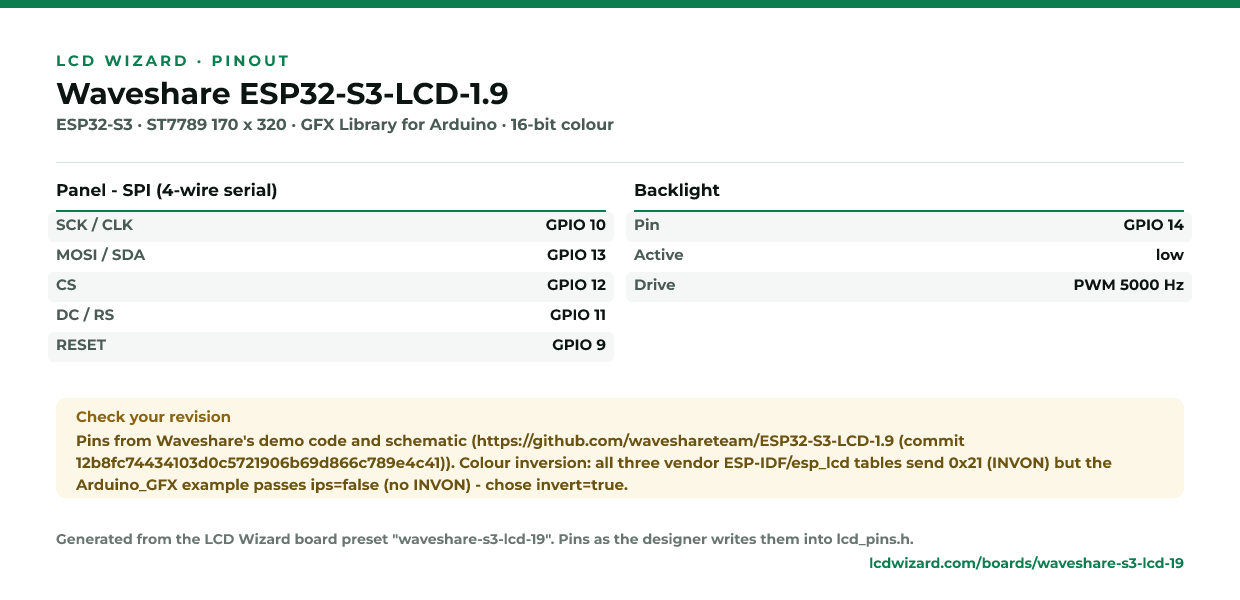

The pinout on one page
Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.
Download the pinout (PNG)Open it as SVG
From the people who made it
The board’s own documentation. Pinouts on vendor pages do sometimes disagree with the hardware in front of you - where this page and that one differ, trust your board and tell us.
- The vendor’s product page
- Vendor documentation
- Schematic (PDF)
- Waveshare demo code (pins read from here)
Designs for this board
Nobody has published a design for this board yet. Publish yours from the designer and it appears here and in the gallery.
