Waveshare ESP32-S3-Knob-Touch-LCD-1.8

1.8" 360x360 round IPS LCD (ST77916, QSPI), CST816D touch, PCM5100A speaker, TF card, battery sense.

Design a UI for this board Test my board Read the quick start

Building for it

A project is made for one toolchain, picked when you start it. All four can drive this board:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	Change a screen by editing a file on the board. No compiler once it is flashed. Start a project
ESPHome	No compiler to install, and the panel can join Home Assistant as real entities. Start a project
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Waveshare
MCU	ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules)
Display	Sitronix ST77916, 360 x 360 px, QSPI (quad SPI), 16-bit colour
Touch	Hynitron CST816S (capacitive, I2C)
Backlight	GPIO 47, dimmable (PWM)
Memory	16 MB flash, 8 MB octal PSRAM (N16R8)
Graphics library	GFX Library for Arduino

Display pins

ST77916 on QSPI (quad SPI): QSPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion on.

Signal	Pin
SCK	GPIO 13
D0 - D3	GPIO 15, 16, 17, 18
CS	GPIO 14
RESET	GPIO 21
Backlight	GPIO 47

Touch pins

CST816S: I2C address 0x15, 300 kHz.

Signal	Pin
SDA	GPIO 11
SCL	GPIO 12
RESET	not connected

Also on the board

SDCard - SD card, CLK GPIO 4, CMD GPIO 3, D0 GPIO 5, D1 GPIO 6, D2 GPIO 42, D3 GPIO 2
Battery - analog input on GPIO 1
BOOTButton - input on GPIO 0

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Pins, panel start-up, backlight, touch and knob from Waveshare's own demo (https://files.waveshare.com/wiki/ESP32-S3-Knob-Touch-LCD-1.8/ESP32-S3-Knob-Touch-LCD-1.8-Demo.zip), each checked on its schematic. The panel is started with Waveshare's own ST77916 register load (Hardware > Display, Panel init sequence) at 40 MHz. The knob (Hardware > Inputs) is a two-way switch, not a quadrature encoder: a click is a pulse on GPIO 8 (clockwise) or GPIO 7 (anticlockwise), read every 3 ms as Waveshare reads it; it has no push switch, so Encoder pressed has nothing to listen to on this board. Touch is polled at 300 kHz with its reset (GPIO 10) and interrupt (GPIO 9) left alone, as Waveshare's demo leaves them. On the board and not in this preset: the DRV2605 vibration motor (no driver); the PDM microphone (the app reads I2S microphones only); the second chip (an ESP32-U4WDH) and its own knob. The headphone DAC is carried as Waveshare's audio demo drives it (I2S 39/40/41), but its mute line and its input switch are the second chip's, so the S3 is heard only while that chip leaves the DAC to it. The ESPHome export does not send Waveshare's panel load, so it is refused. Compiled; not run on a board here.

Designing for it in LCD Wizard

Choose Waveshare ESP32-S3-Knob-Touch-LCD-1.8 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the GFX Library for Arduino configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The CST816S is capacitive and needs no calibration. The firmware resets it and checks it answers on every boot.
The backlight is dimmable: give a slider or a button a Set backlight action.
With PSRAM the LVGL memory pool can live there, leaving internal RAM for everything else.
Screens are designed for 360 x 360 px in either orientation, with LVGL 9 or LVGL 8.

The parts

ST77916. Round QSPI panel found on 1.8"-2.1" ESP32-S3 boards.

CST816S. Single touch plus gestures. Standard on 1.28" round GC9A01 modules. Needs RST wired.

ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.

GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

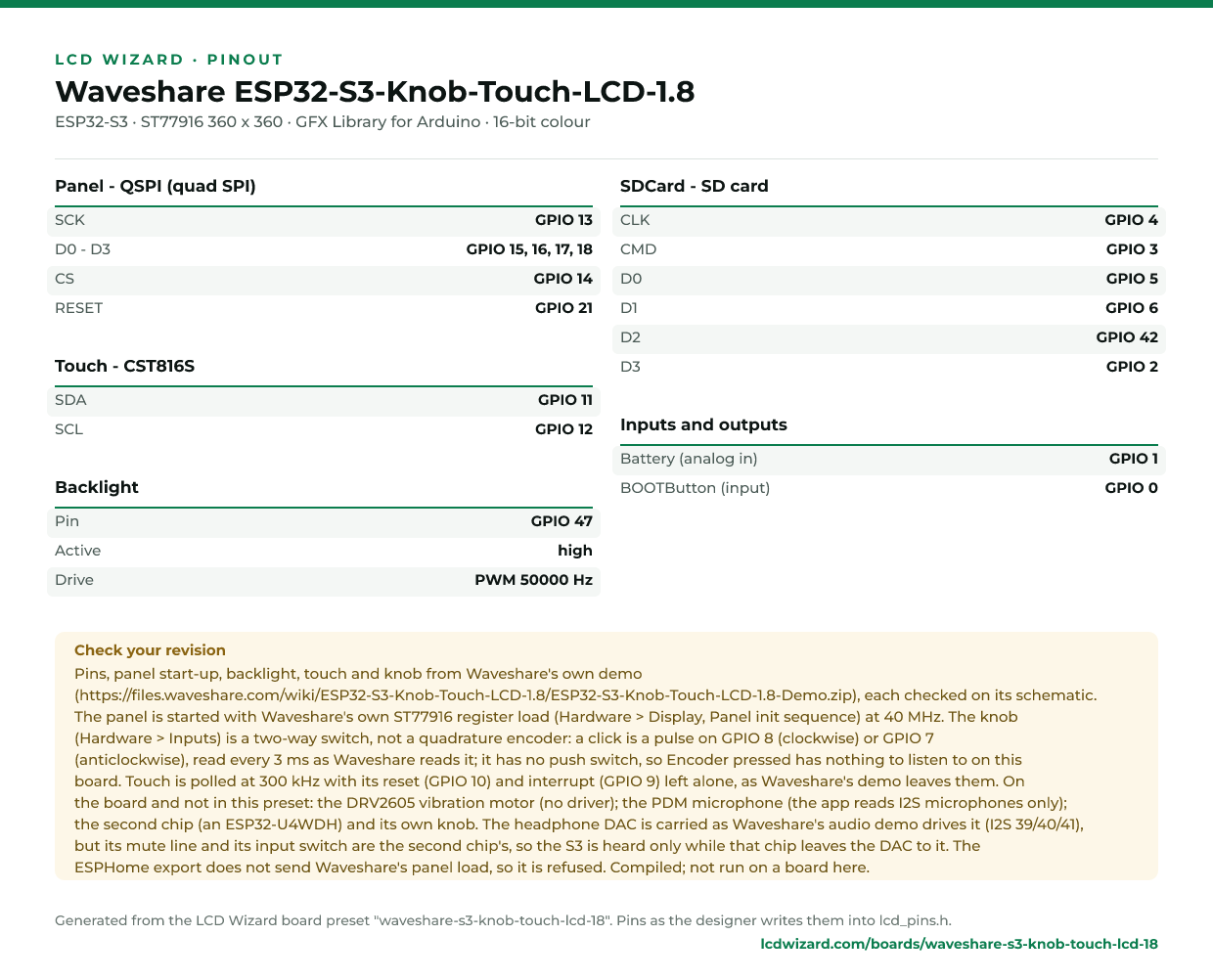

The pinout on one page

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.

Designs for this board

Nobody has published a design for this board yet. Publish yours from the designer and it appears here and in the gallery.

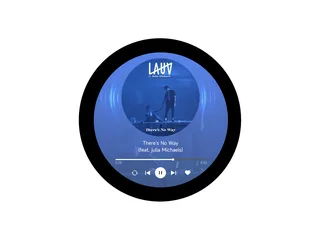

Waveshare ESP32-S3-Touch-LCD-1.851.85" 360x360 IPS LCD (ST77916, QSPI), CST816 (CST816S/T family) touch, PCM5101A (I2S DAC, no control bus) audio, TF card, QMI8658C, PCF85063A.ESP32-S3 · ST77916 360 x 360 · CST816S touchPurchase this board

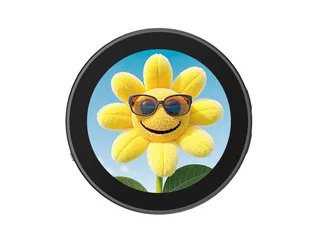

Waveshare ESP32-S3-Touch-LCD-1.85C1.85" 360x360 IPS LCD (ST77916, QSPI), CST816 (CST816S datasheet linked by vendor) touch, ES8311 (V2); PCM5101APWR on V1 audio, TF card, PCF85063ATL.ESP32-S3 · ST77916 360 x 360 · CST816S touchPurchase this board
