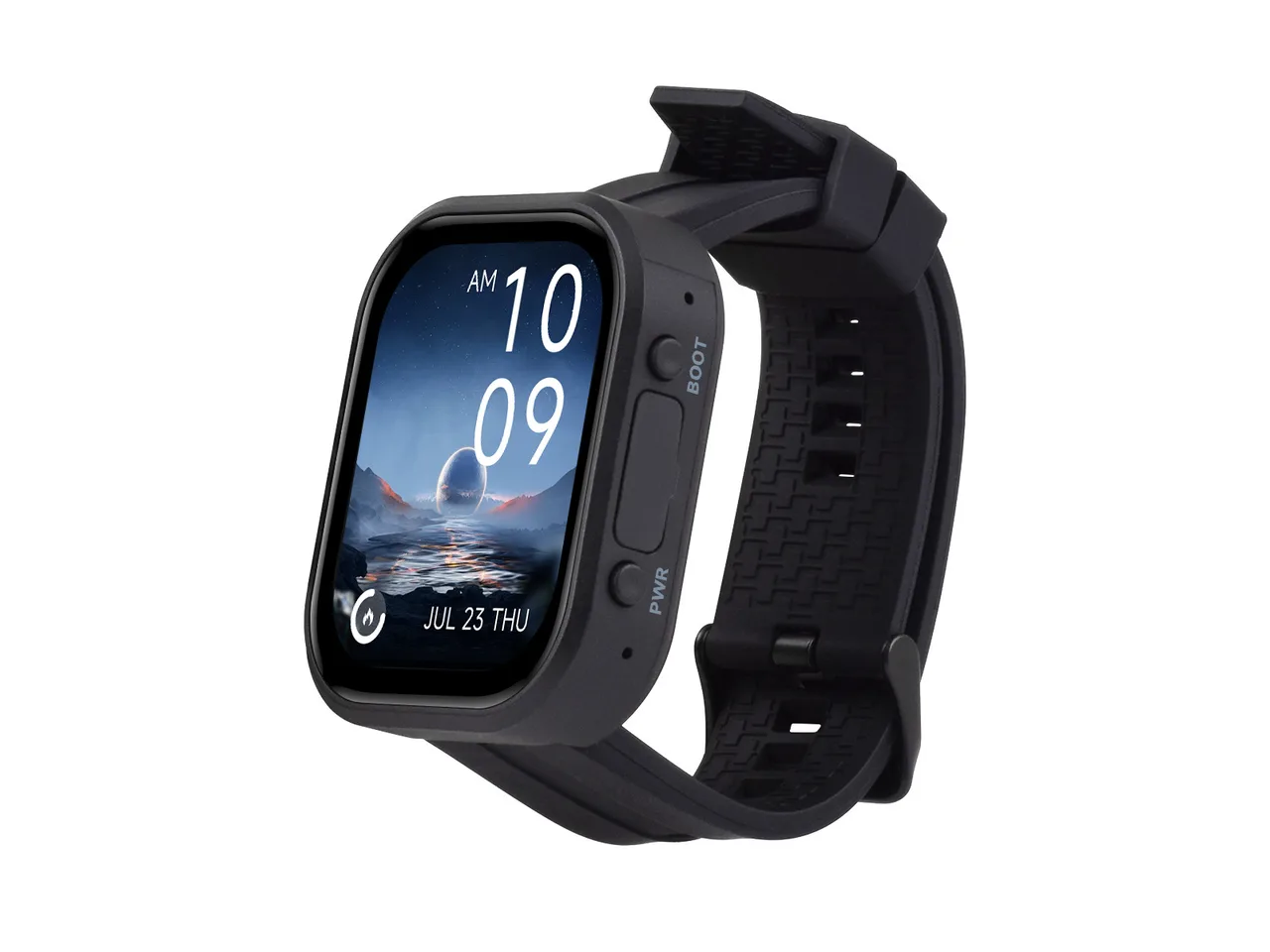

Waveshare ESP32-C6-Touch-AMOLED-2.06

2.06" 410x502 AMOLED (CO5300, QSPI), FT3168 touch, ES8311 speaker and ES7210 microphones, AXP2101, QMI8658C, PCF85063ATL.

Design a UI for this board Test my board Purchase this board Read the quick start

Affiliate link: LCD Wizard may earn a commission if you buy through it.

Building for it

A project is made for one toolchain, picked when you start it. For this board you can use three of the four:

Toolchain
Arduino (C++)	Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project
MicroPython	The MicroPython export drives a quad SPI panel on the ESP32-S3 only so far.
ESPHome	No compiler to install, and the panel can join Home Assistant as real entities. Start a project
ESP-IDF (C)	Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project

At a glance

Part	Detail
Maker	Waveshare
MCU	ESP32-C6 RISC-V @ 160 MHz, 512 KB SRAM (no PSRAM)
Display	Chipone CO5300, 410 x 502 px, QSPI (quad SPI), 16-bit colour
Touch	FocalTech FT3168 / FT6146 (capacitive, I2C)
Backlight	None: the panel is its own light, dimmed by a command
Memory	16 MB flash, no PSRAM (N16)
Graphics library	GFX Library for Arduino

Display pins

CO5300 on QSPI (quad SPI): QSPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion off.

Signal	Pin
SCK	GPIO 0
D0 - D3	GPIO 1, 2, 3, 4
CS	GPIO 5
RESET	GPIO 11

Touch pins

FT3168 / FT6146: I2C address 0x38, 400 kHz, shares the display bus.

Signal	Pin
SDA	GPIO 8
SCL	GPIO 7
INT / IRQ	GPIO 15
RESET	GPIO 10

Also on the board

I2C (GPIO 8 / 7) - SDA GPIO 8, SCL GPIO 7
PMIC - AXP2101, at 0x34, on I2C (GPIO 8 / 7)
IMU - QMI8658, at 0x6B, on I2C (GPIO 8 / 7)
RTC - PCF85063, at 0x51, on I2C (GPIO 8 / 7)
BOOTButton - input on GPIO 9
PWRButton - input on GPIO 18

The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.

Check your revision. Pins from Waveshare's demo code and schematic (https://github.com/waveshareteam/ESP32-C6-Touch-AMOLED-2.06). Bus speed: 40 MHz in the ESP-IDF BSP, 80 MHz (library default) in the Arduino examples; recorded 40. Start-up table and starting brightness differ by framework (BSP table ending 0x51 = 0xFF, Arduino class ending 0x51 = 0xD0); both are recorded, the BSP's as initSeq. The rounder differs by framework too: both axes to even in the BSP, full width with even rows in the Arduino examples; recorded the BSP's. The glass has rounded corners whose radius Waveshare does not give, so the designer draws them square: keep what matters out of the corners, or set a corner radius on the Display tab once it is measured. Brightness is a command to the panel, not a backlight pin. Compiled; not run on a board here.

Designing for it in LCD Wizard

Choose Waveshare ESP32-C6-Touch-AMOLED-2.06 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch, lcd_pins.h, the GFX Library for Arduino configuration, lv_conf.h and platformio.ini - a project that builds for this board as it comes.
The FT3168 / FT6146 is capacitive and needs no calibration. The firmware resets it and checks it answers on every boot.
The panel has no backlight pin: it is its own light, and its brightness is a command. Give a slider or a button a Set backlight action and it dims as a backlight would.
Screens are designed for 410 x 502 px in either orientation, with LVGL 9 or LVGL 8.

The parts

CO5300. The AMOLED controller on most of Waveshare's 1.32"-2.16" boards, round and rectangular. Brightness is a command, not a backlight pin.

FT3168 / FT6146. Waveshare's AMOLED boards (1.43", 1.64", 1.8", 1.91", 2.06").

ESP32-C6. No PSRAM. SPI displays only in practice.

GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

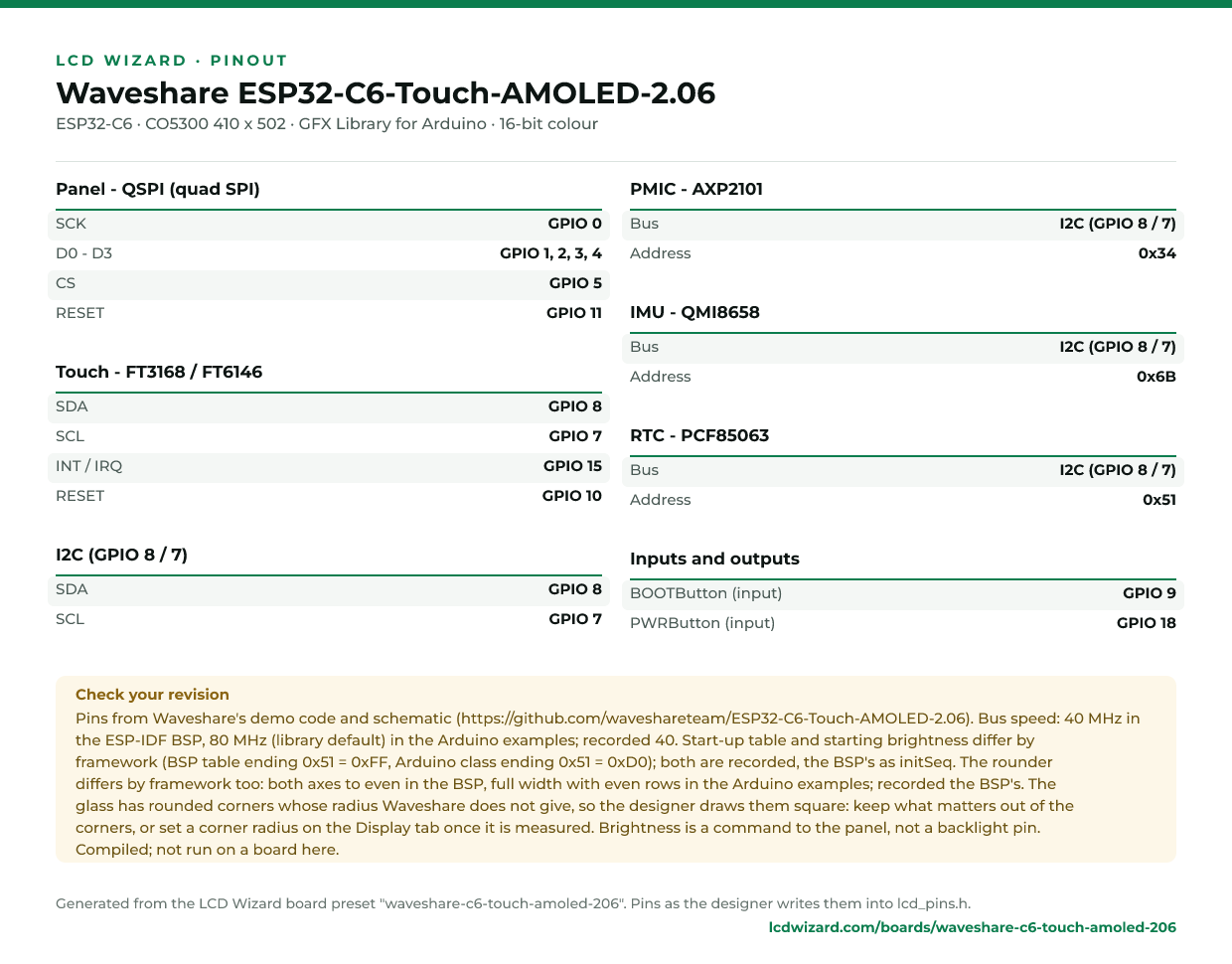

The pinout on one page

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.

Download the pinout (PNG)Open it as SVG

The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.

From the people who made it

The board’s own documentation. Pinouts on vendor pages do sometimes disagree with the hardware in front of you - where this page and that one differ, trust your board and tell us.

Designs for this board

Nobody has published a design for this board yet. Publish yours from the designer and it appears here and in the gallery.
