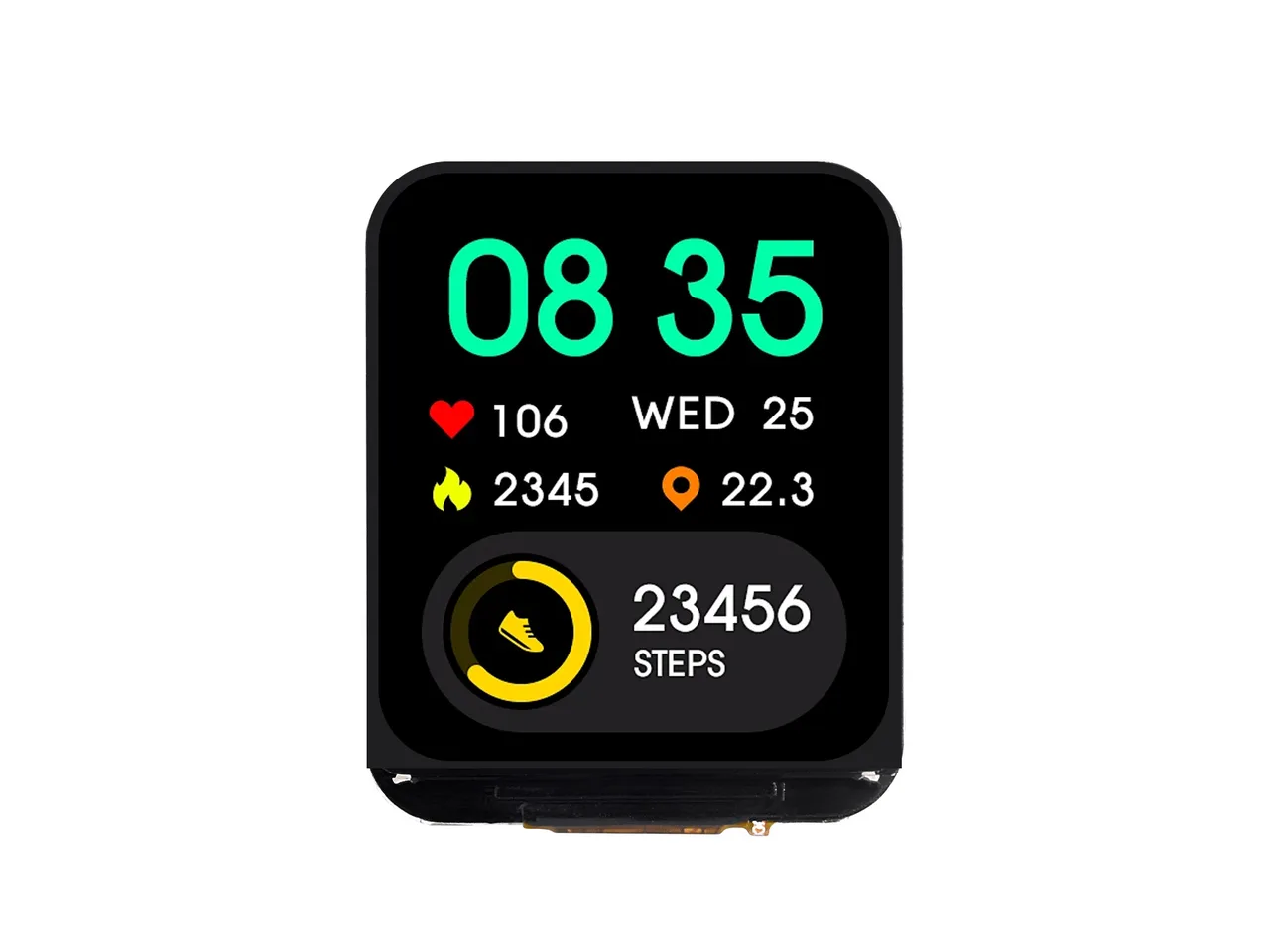

Waveshare ESP32-C6-LCD-1.69
1.69" 240x280 IPS LCD (ST7789V2, SPI), ES8311 audio, QMI8658A, PCF85063A.
Building for it
A project is made for one toolchain, picked when you start it. For this board you can use 2 of them:
| Toolchain | |
|---|---|
| Arduino (C++) | Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project |
| MicroPython | lvgl_micropython has no build for this chip. |
| ESPHome | No compiler to install, and the panel can join Home Assistant as real entities. Start a project |
At a glance
| Part | Detail |
|---|---|
| Maker | Waveshare |
| MCU | ESP32-C6 RISC-V @ 160 MHz, 512 KB SRAM (no PSRAM) |
| Display | Sitronix ST7789, 240 x 280 px, SPI (4-wire serial), 16-bit colour |
| Touch | None |
| Backlight | GPIO 6, dimmable (PWM) |
| Memory | 16 MB flash, no PSRAM (N16) |
| Graphics library | GFX Library for Arduino |
Display pins
ST7789 on SPI (4-wire serial): SPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion on.
| Signal | Pin |
|---|---|
| SCK / CLK | GPIO 1 |
| MOSI / SDA | GPIO 2 |
| CS | GPIO 5 |
| DC / RS | GPIO 3 |
| RESET | GPIO 4 |
| Backlight | GPIO 6 |
Also on the board
- I2C (GPIO 8 / 7) - SDA GPIO 8, SCL GPIO 7
The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.
Check your revision. Pins from Waveshare's demo code and schematic (https://files.waveshare.com/wiki/ESP32-C6-LCD-1.69/ESP32-C6-LCD-1.69-Demo.zip). The ESP-IDF factory demo leaves the gap call commented out (and the comment says 0,34), but the Arduino demos and xiaozhi both use row offset 20 for 240x280 - 20 recorded.
Designing for it in LCD Wizard
- Choose Waveshare ESP32-C6-LCD-1.69 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch,
lcd_pins.h, the GFX Library for Arduino configuration,lv_conf.handplatformio.ini- a project that builds for this board as it comes. - The backlight is dimmable: give a slider or a button a Set backlight action.
- Screens are designed for 240 x 280 px in either orientation, with LVGL 9 or LVGL 8.
The parts
ST7789. Excellent colour and tolerates 80 MHz SPI. Many modules have no CS pin - tie it low and set CS to -1.
ESP32-C6. No PSRAM. SPI displays only in practice.
GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

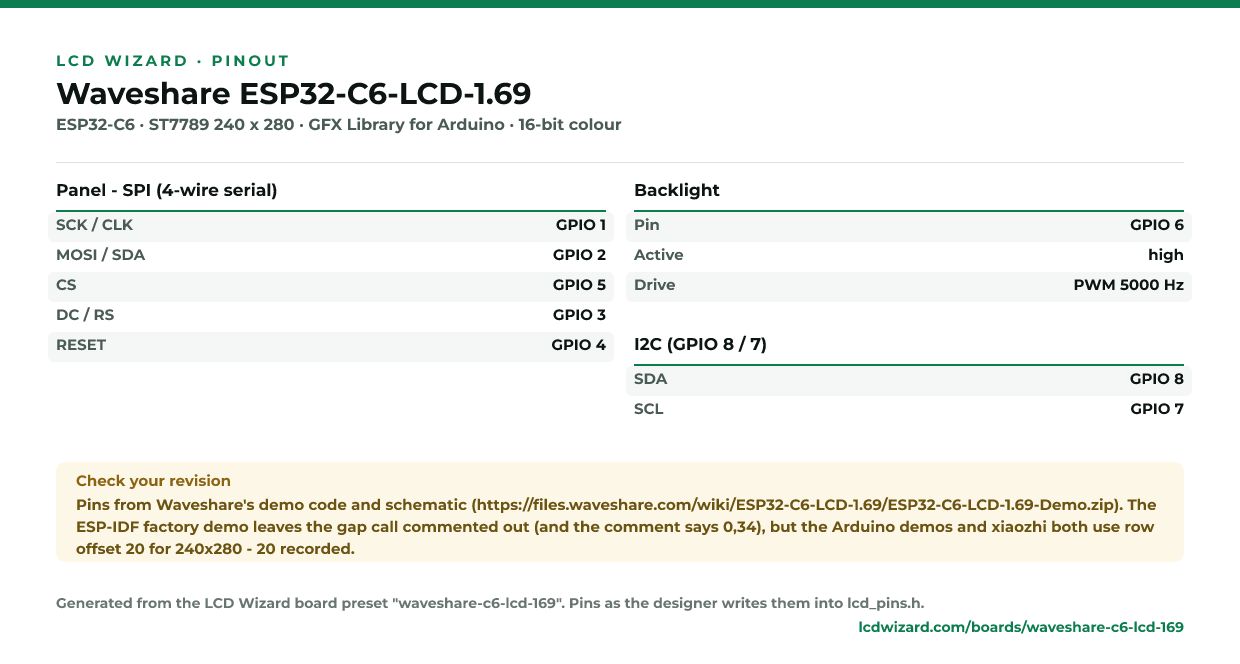

The pinout on one page
Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.
Download the pinout (PNG)Open it as SVG
From the people who made it
The board’s own documentation. Pinouts on vendor pages do sometimes disagree with the hardware in front of you - where this page and that one differ, trust your board and tell us.
- The vendor’s product page
- Vendor documentation
- Schematic (PDF)
- Waveshare demo code (pins read from here)
