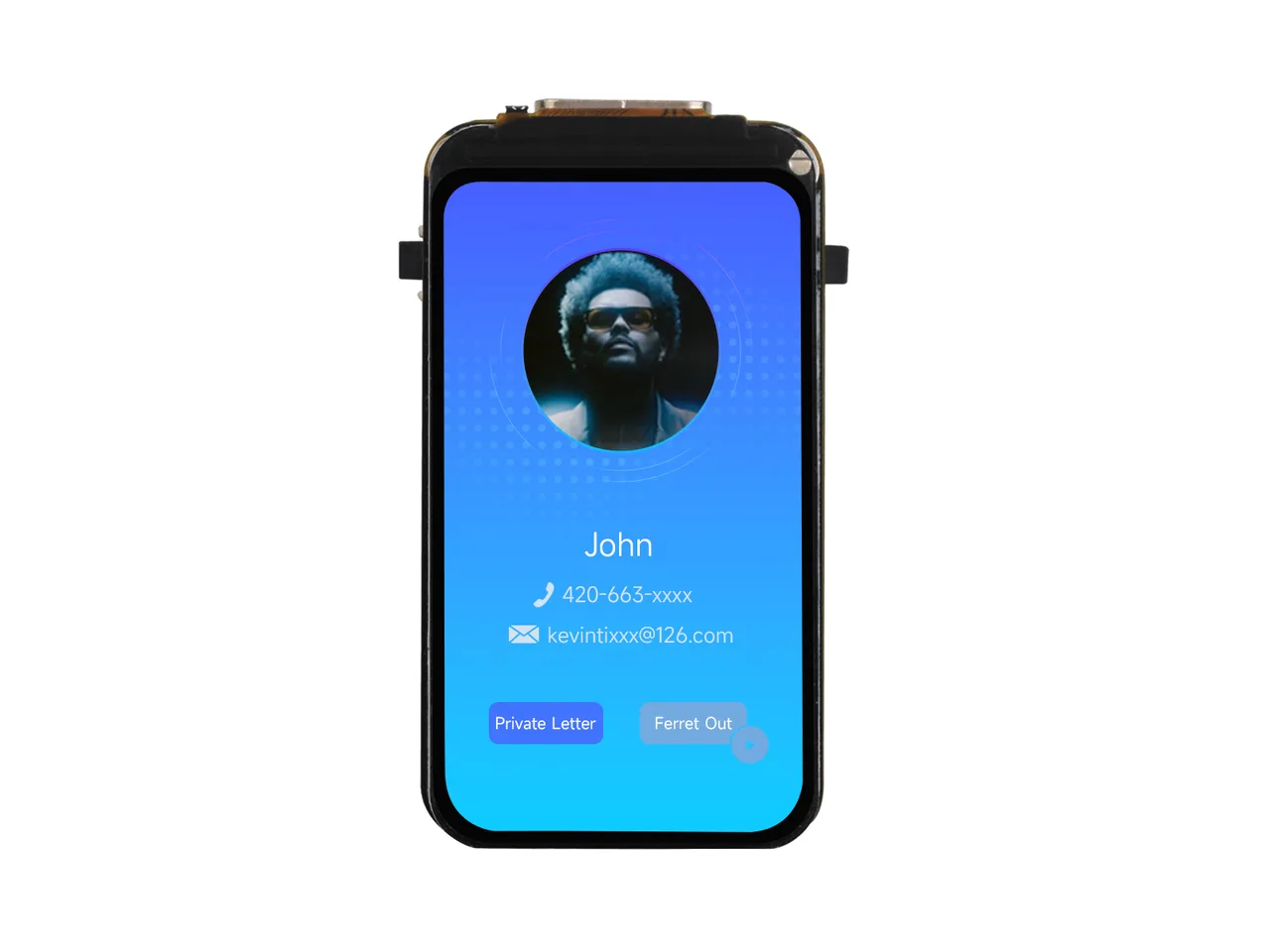

Waveshare ESP32-C6-LCD-1.47
1.47" 172x320 IPS LCD (ST7789 (ESP-IDF demo drives it as ST7789T via Vernon_ST7789T), SPI), TF card.
Affiliate link: LCD Wizard may earn a commission if you buy through it.
Building for it
A project is made for one toolchain, picked when you start it. All four can drive this board:
| Toolchain | |
|---|---|
| Arduino (C++) | Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project |
| MicroPython | Change a screen by editing a file on the board. No compiler once it is flashed. Start a project |
| ESPHome | No compiler to install, and the panel can join Home Assistant as real entities. Start a project |
| ESP-IDF (C) | Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project |
At a glance
| Part | Detail |
|---|---|
| Maker | Waveshare |
| MCU | ESP32-C6 RISC-V @ 160 MHz, 512 KB SRAM (no PSRAM) |
| Display | Sitronix ST7789, 172 x 320 px, SPI (4-wire serial), 16-bit colour |
| Touch | None |
| Backlight | GPIO 22, dimmable (PWM) |
| Memory | 4 MB flash, no PSRAM (N4) |
| Graphics library | GFX Library for Arduino |
Display pins
ST7789 on SPI (4-wire serial): SPI clock 80 MHz, host SPI2_HOST, RGB colour order, inversion on.
| Signal | Pin |
|---|---|
| SCK / CLK | GPIO 7 |
| MOSI / SDA | GPIO 6 |
| MISO / SDO | GPIO 5 |
| CS | GPIO 14 |
| DC / RS | GPIO 15 |
| RESET | GPIO 21 |
| Backlight | GPIO 22 |
Also on the board
- BOOTButton - input on GPIO 9
The preset adds these to the Hardware tab with the board, so a sensor can go straight onto the connector.
Check your revision. Pins from Waveshare's demo code and schematic (https://files.waveshare.com/wiki/ESP32-C6-LCD-1.47/ESP32-C6-LCD-1.47-Demo.zip). Colour order: the Arduino demo writes MADCTL 0x00 (RGB, bit 3 clear) and pushes pixels itself; the ESP-IDF demo sets rgb_endian = LCD_RGB_ENDIAN_BGR and mirrors X.
Designing for it in LCD Wizard
- Choose Waveshare ESP32-C6-LCD-1.47 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch,
lcd_pins.h, the GFX Library for Arduino configuration,lv_conf.handplatformio.ini- a project that builds for this board as it comes. - The backlight is dimmable: give a slider or a button a Set backlight action.
- Screens are designed for 172 x 320 px in either orientation, with LVGL 9 or LVGL 8.
The parts
ST7789. Excellent colour and tolerates 80 MHz SPI. Many modules have no CS pin - tie it low and set CS to -1.
ESP32-C6. No PSRAM. SPI displays only in practice.
GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.
The pinout on one page

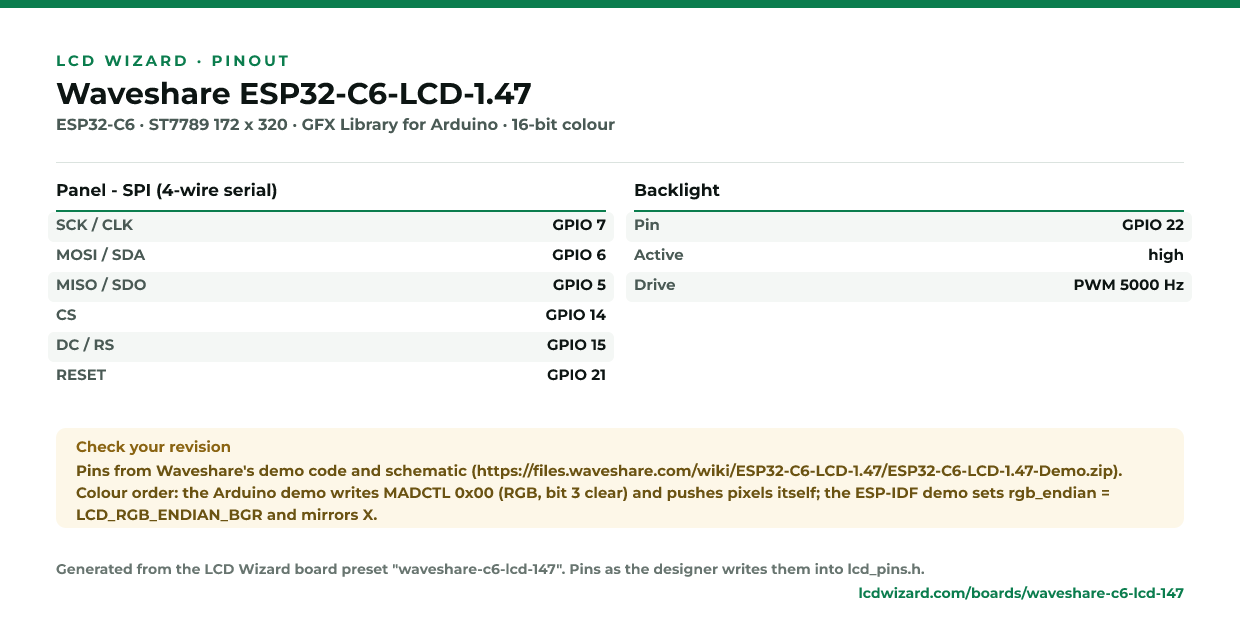

Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.
Download the pinout (PNG)Open it as SVG
The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.
