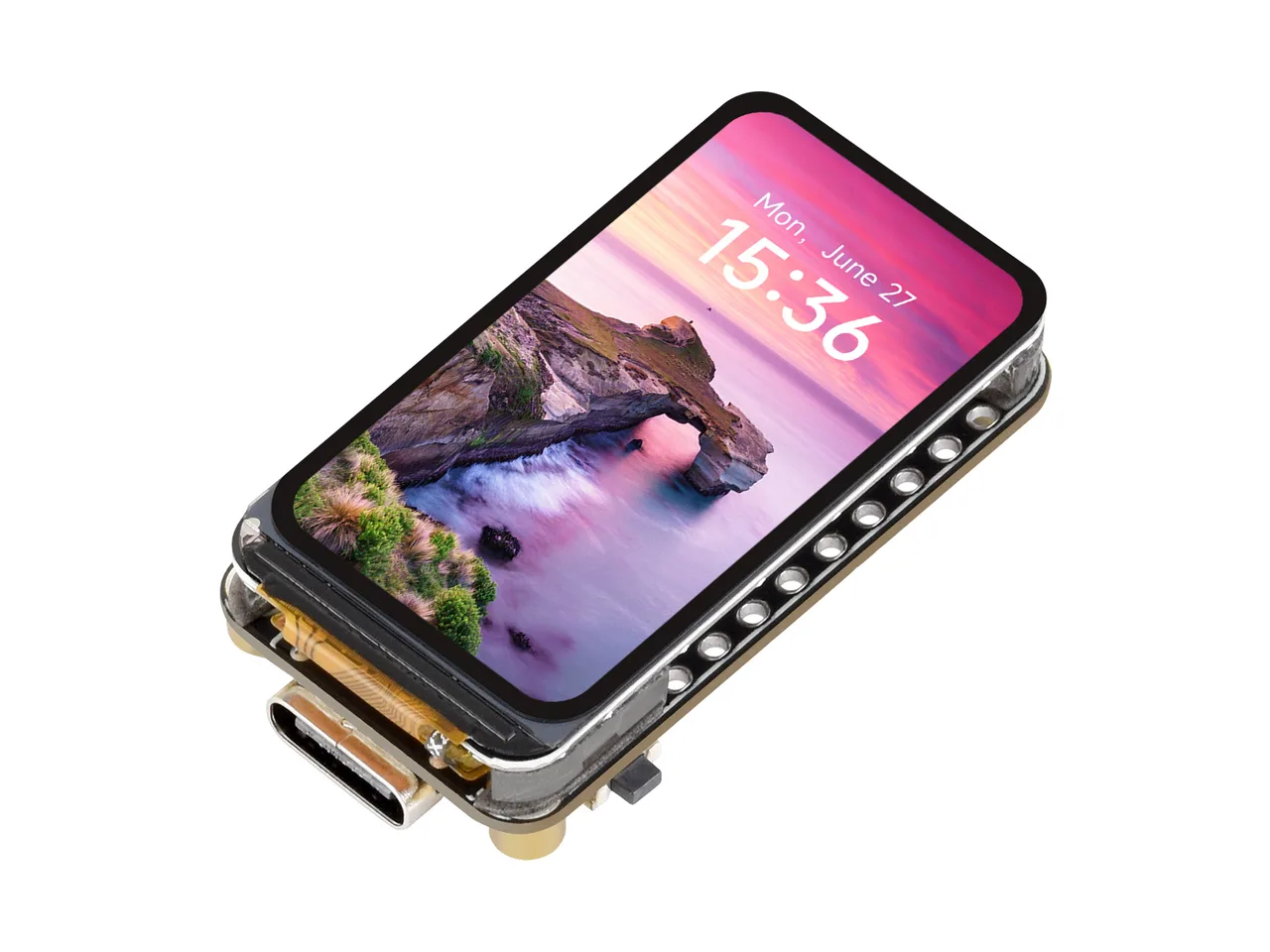

Waveshare ESP32-C5-LCD-1.47
1.47" 172x320 TFT (ST7789, SPI), TF card.
Building for it
A project is made for one toolchain, picked when you start it. For this board you can use 2 of them:
| Toolchain | |
|---|---|
| Arduino (C++) | Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project |
| MicroPython | lvgl_micropython has no build for this chip. |
| ESPHome | No compiler to install, and the panel can join Home Assistant as real entities. Start a project |
At a glance
| Part | Detail |
|---|---|
| Maker | Waveshare |
| MCU | ESP32-C5 RISC-V @ 240 MHz, dual-band Wi-Fi 6, 384 KB SRAM, quad PSRAM on some modules |
| Display | Sitronix ST7789, 172 x 320 px, SPI (4-wire serial), 16-bit colour |
| Touch | None |
| Backlight | GPIO 10, dimmable (PWM) |
| Memory | 4 MB flash, no PSRAM (N4) |
| Graphics library | GFX Library for Arduino |
Display pins
ST7789 on SPI (4-wire serial): SPI clock 40 MHz, host SPI2_HOST, RGB colour order, inversion on.
| Signal | Pin |
|---|---|
| SCK / CLK | GPIO 7 |
| MOSI / SDA | GPIO 6 |
| CS | GPIO 23 |
| DC / RS | GPIO 24 |
| RESET | GPIO 26 |
| Backlight | GPIO 10 |
Check your revision. Pins from Waveshare's demo code and schematic (https://github.com/waveshareteam/esp32-c5-lcd-1.47). None on pins: docs page, schematic GPIO table, BSP header and Arduino example all agree.
Designing for it in LCD Wizard
- Choose Waveshare ESP32-C5-LCD-1.47 on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch,
lcd_pins.h, the GFX Library for Arduino configuration,lv_conf.handplatformio.ini- a project that builds for this board as it comes. - The backlight is dimmable: give a slider or a button a Set backlight action.
- Screens are designed for 172 x 320 px in either orientation, with LVGL 9 or LVGL 8.
The parts
ST7789. Excellent colour and tolerates 80 MHz SPI. Many modules have no CS pin - tie it low and set CS to -1.
ESP32-C5. SPI displays. Quad PSRAM on the -R4/-R8 modules takes GPIO15.
GFX Library for Arduino. Moshi Liu's library. Best QSPI/AMOLED and RGB coverage. Configured in code.

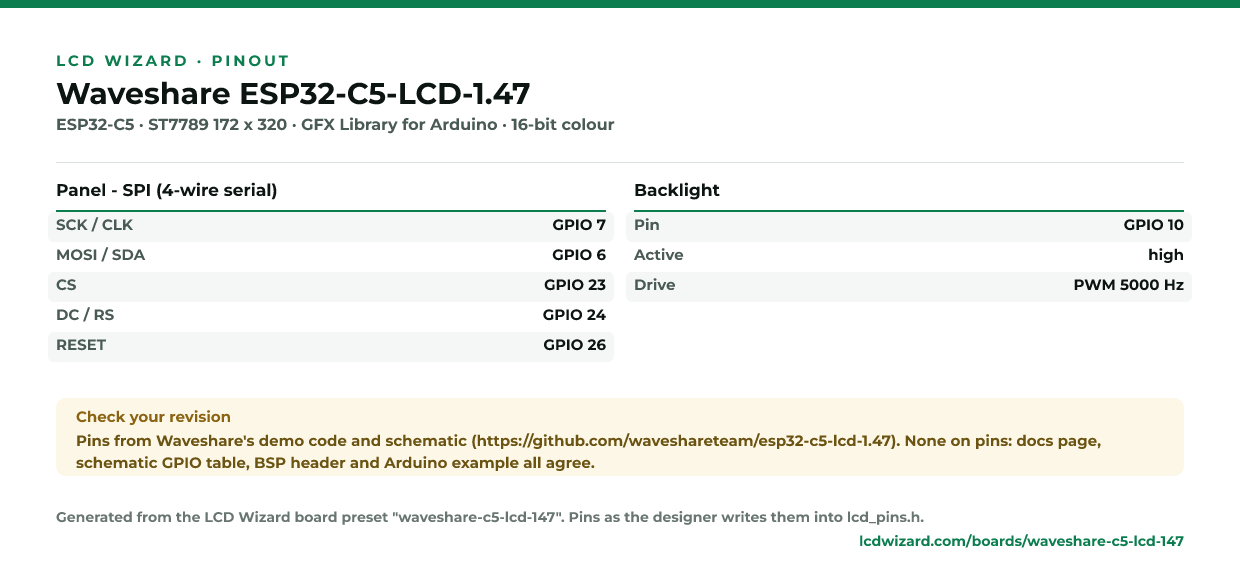

The pinout on one page
Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.
Download the pinout (PNG)Open it as SVG
From the people who made it
The board’s own documentation. Pinouts on vendor pages do sometimes disagree with the hardware in front of you - where this page and that one differ, trust your board and tell us.
- The vendor’s product page
- Vendor documentation
- Schematic (PDF)
- Waveshare demo code (pins read from here)
Designs for this board
Nobody has published a design for this board yet. Publish yours from the designer and it appears here and in the gallery.
