ESP32-S3 + ILI9341 SPI
ESP32-S3 DevKitC wired to a 2.8" ILI9341 with XPT2046 touch.
Building for it
A project is made for one toolchain, picked when you start it. All four can drive this board:
| Toolchain | |
|---|---|
| Arduino (C++) | Every board, every widget and every peripheral here. The most control, and the most to set up. Start a project |
| MicroPython | Change a screen by editing a file on the board. No compiler once it is flashed. Start a project |
| ESPHome | No compiler to install, and the panel can join Home Assistant as real entities. Start a project |
| ESP-IDF (C) | Espressif's own framework: esp_lcd, the component registry and idf.py, with nothing of Arduino in it. Start a project |
At a glance
| Part | Detail |
|---|---|
| Maker | Generic |
| MCU | ESP32-S3 Xtensa LX7 dual-core @ 240 MHz, 512 KB SRAM (+ 2-16 MB PSRAM on most modules) |
| Display | Ilitek ILI9341, 240 x 320 px, SPI (4-wire serial), 16-bit colour |
| Touch | XPTek XPT2046 (resistive, SPI) |
| Backlight | GPIO 47, dimmable (PWM) |
| Memory | 16 MB flash, 8 MB octal PSRAM (N16R8) |
| Graphics library | LovyanGFX |
Display pins
ILI9341 on SPI (4-wire serial): SPI clock 40 MHz, host SPI2_HOST, BGR colour order, inversion off.
| Signal | Pin |
|---|---|
| SCK / CLK | GPIO 12 |
| MOSI / SDA | GPIO 11 |
| MISO / SDO | GPIO 13 |
| CS | GPIO 10 |
| DC / RS | GPIO 14 |
| RESET | GPIO 21 |
| Backlight | GPIO 47 |
Touch pins
XPT2046: 2500 kHz, shares the display bus.
| Signal | Pin |
|---|---|
| SCK | GPIO 12 |
| MOSI | GPIO 11 |
| MISO | GPIO 13 |
| CS | GPIO 9 |
| IRQ / PENIRQ | GPIO 8 |
Check your revision. Wiring template - change the pins to match your build.
Designing for it in LCD Wizard
- Choose ESP32-S3 + ILI9341 SPI on the Hardware tab (or use the button above) and every pin on this page is filled in. The export writes the sketch,
lcd_pins.h, the LovyanGFX configuration,lv_conf.handplatformio.ini- a project that builds for this board as it comes. - The XPT2046 is resistive, so the firmware calibrates it on the device: touch the crosses on the first boot after an upload and the result is saved. The screen says whether it worked.
- The backlight is dimmable: give a slider or a button a Set backlight action.
- With PSRAM the LVGL memory pool can live there, leaving internal RAM for everything else.
- Screens are designed for 240 x 320 px in either orientation, with LVGL 9 or LVGL 8.
The parts
ILI9341. The most common hobby TFT. 2.2"-2.8" modules, usually with an XPT2046 resistive panel.
XPT2046. The classic 4-wire resistive controller. Needs calibration. Can share the display SPI bus with its own CS.
ESP32-S3. The only common Arduino target with a hardware RGB565 LCD peripheral. PSRAM is effectively required for RGB panels.
LovyanGFX. Widest panel and bus coverage, DMA on ESP32. Configured with a C++ config class.

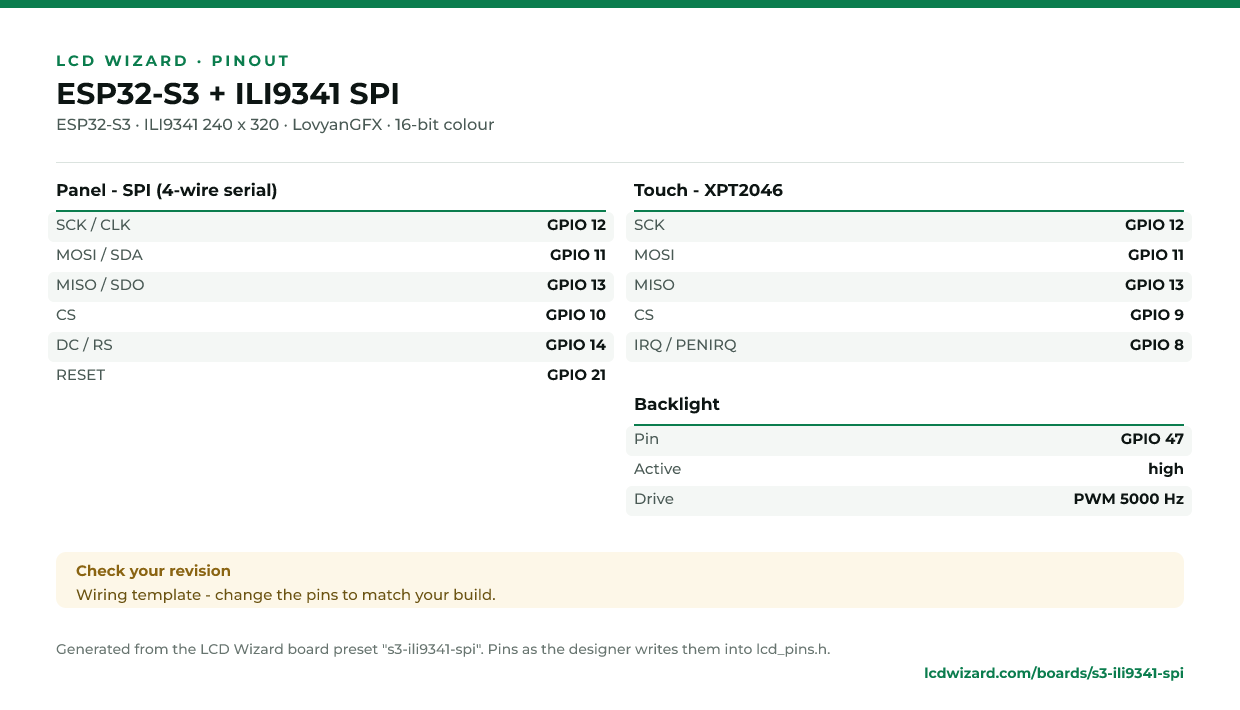

The pinout on one page
Every pin above, laid out to print and keep beside the bench. Generated from this preset, so it says exactly what the designer writes into lcd_pins.h.
Download the pinout (PNG)Open it as SVG
The same pins as data - board.json and pins.csv - are in the open pinout dataset on GitHub, free to reuse under CC BY 4.0.
